SLSF E8A 2017 with Train 108, the Sunnyland at Birmingham Alabama's Union Station on April 15, 1963.

The train was the overnight mail and express train to Memphis and onto KC, MO.

EMD E8A No. 2017, was built in May 1950, and named “Pensive”, the 1944 Kentucky Derby and Preakness Winner.

(Roger Puta, courtesy Marty Bernard, railfan 44, Public domain, via Wikimedia Commons)



Frisco herald.

ST. LOUIS-SAN FRANCISCO RAILWAY

The St. Louis–San Francisco Railway (reporting mark SLSF), commonly known as the "Frisco", was a railroad that operated in the Midwest and South Central United States from 1876 to April 17, 1980. At the end of 1970, it operated 4,547 miles (7,318 km) of road on 6,574 miles (10,580 km) of track, not including subsidiaries Quanah, Acme and Pacific Railway and the Alabama, Tennessee and Northern Railroad; that year, it reported 12,795 million ton-miles of revenue freight and no passengers. It was purchased and absorbed into the Burlington Northern Railroad in 1980. Despite its name, it never came close to San Francisco.



St. Louis-San Francisco Railway system map, 1918.

(Own work, Public domain, via Wikimedia Commons)

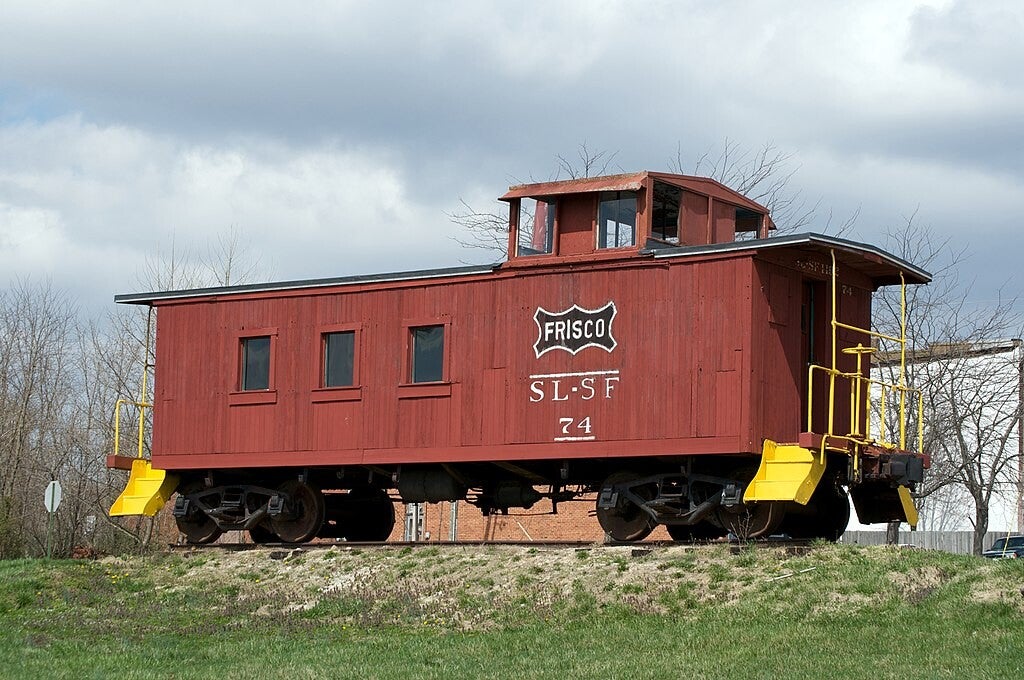

Preserved wooden caboose on display in Missouri.

(Doug Wertman from Rogers, AR, USA, CC BY 2.0 <https://creativecommons.org/licenses/by/2.0>, via Wikimedia Commons)



Preserved Frisco Railway Express Agency car, along with

Kiamichi EMD F7 slug No. SL1, at the Frisco Depot Museum in Hugo, Oklahoma.

(Michael Barera, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons, cropped)



History

The St. Louis–San Francisco Railway was incorporated in Missouri on September 7, 1876. It was formed from the Missouri Division and Central Division of the Atlantic and Pacific Railroad. This land grant line was one of two railroads (the other being the Missouri-Kansas-Texas) authorized to build across Indian Territory. The Atchison, Topeka and Santa Fe Railroad, interested in the A&P right of way across the Mojave Desert to California, took the road over until the larger road went bankrupt in 1893; the receivers retained the western right of way but divested the ATSF of the St. Louis–San Francisco mileage on the Great Plains. After bankruptcy, the Frisco emerged as the St. Louis and San Francisco Railroad, incorporated on June 29, 1896, which also went bankrupt.

In 1903, Frisco executives engaged in negotiations to purchase large tracts of land in St. Bernard Parish, Louisiana "up to the Orleans Parish line" as part of plans of "gigantic scope" to further the expansion of the company's rail lines and operations facilities across the state. As part of this plan, the executives proposed relocation of the residents of the historically Black community of Fazendeville to the much smaller, neighboring village of Versailles, which was described as a "settlement consisting merely of a row of very small properties along a public road running at right angles from the river to the railroad track"; however, many of Fazendeville's residents resisted and then ultimately refused the railway's financial offers. According to one of the newspapers which reported on those plans, "The Frisco road cannot obtain title to the National Cemetery, but is after all the rest of the river front, and wants to cross the present public road practically at grade in many public places."

On August 24, 1916, the company was reorganized as the St. Louis–San Francisco Railway, though the line never went west of Texas, terminating more than 1,000 miles (1,600 km) from San Francisco.

The St. Louis–San Francisco Railway had two main lines: St. Louis–Tulsa–Oklahoma City-Floydada, Texas, and Kansas City–Memphis–Birmingham. The junction of the two lines was in Springfield, Missouri, home to the company's main shop facility and headquarters. Other lines included:

  • Springfield–Kansas City (via Clinton, Missouri)
  • Monett, Missouri (Pierce City)–Wichita, Kansas
  • Monett, Missouri–Hugo, Oklahoma–Paris, Texas
  • St. Louis–River Junction, Arkansas (Memphis, Tennessee)
  • Tulsa, Oklahoma–Dallas, Texas
  • Tulsa, Oklahoma–Avard, Oklahoma
  • Lakeside, Oklahoma–Hugo, Oklahoma–Hope, Arkansas
  • Amory, Mississippi-Pensacola, Florida

From March 1917 through January 1959, the Frisco, in a joint venture with the Missouri–Kansas–Texas Railroad, operated the Texas Special. This luxurious train, a streamliner from 1947, ran from St. Louis to Dallas, Texas, Fort Worth, Texas, and San Antonio, Texas.

The Frisco merged into the Burlington Northern Railroad on November 21, 1980 at 2:10 pm Central Standard Time.

The city of Frisco, Texas, was named after the railroad and uses the former railroad's logo as its own logo. The logo is modeled after a stretched-out raccoon skin (giving rise to Frisco High School's mascot, the Fighting Raccoons).



Postcard photo of the Frisco Railway's streamliner, The Firefly, ca. 1939.

(Frisco Railway, Public domain, via Wikimedia Commons)



Postcard depiction of two popular Frisco Railroad passenger trains, The Meteor and The Texas Special. The Meteor is at left. Both trains were equipped with diesel locomotives and brand new line paint schemes in 1948.

(Frisco Railroad, Public domain, via Wikimedia Commons)



Passenger trains

While the Texas Special may be the most famous passenger train operated by Frisco, it was just one of a fleet of named trains. These included:

  • Black Gold (a joint Frisco–Katy operation inaugurated between Tulsa and Houston on January 23, 1938, and continuing until January 18, 1960)
  • The Bluebonnet (St. Louis to San Antonio—with through service by M-K-T—leaving early afternoon, arriving Dallas/Ft. Worth the next morning, and arriving San Antonio late afternoon.)
  • Chadwick Flyer (Branch line from Springfield to Chadwick, Missouri; discontinued by March 1933)
  • Firefly (at various times serving St. Louis, Kansas City, Fort Scott, Tulsa, and Oklahoma City. This was Frisco’s first streamliner, and the first streamliner to be built in the southwest, the streamline modifications being done by Frisco itself)
  • General Wood (Originally between St. Louis and Springfield, Missouri, from May 1941; truncated in June 1942 to service between St. Louis and Newburg, Missouri; and, discontinued entirely in the fall of 1946.)
  • Governor (Joplin–Tulsa–Oklahoma City)
  • Kansas City–Florida Special (Kansas City–Jacksonville)
  • Kansas Limited (St. Louis–Wichita–Ellsworth)
  • Kansas Mail (St. Louis–Wichita)
  • Memphian (St. Louis–Memphis)
  • Memphis Passenger (St. Louis–Memphis)
  • Meteor (St. Louis–Tulsa–Oklahoma City by night with connecting train Monett–Fort Smith–Paris, TX)
  • Oil Fields Special (Kansas City–Tulsa–Dallas–Ft. Worth, with through service to Houston)
  • Oklahoman (Once connected Kansas City–Tulsa but was later rerouted between St. Louis–Oklahoma City)
  • Southland (Kansas City–Birmingham) (truncated successor to the Kansas City–Florida Special)
  • Southwest Limited (St. Louis–Tulsa–Oklahoma City–Lawton)
  • St. Louis-Memphis Limited (St. Louis–Memphis–Birmingham)
  • Sunnyland (Kansas City/St. Louis–Atlanta/Pensacola/New Orleans)
  • Tulsa Texan (a joint Frisco–Katy operation inaugurated between Tulsa and Houston in 1937, and phased out between March and July 1940)
  • Texas Flash (Tulsa–Sherman–Dallas by day)
  • Texokla Limited (St. Louis–Springfield–Dallas)
  • Texas Limited (St. Louis–Springfield–Dallas, with through service to Houston–Galveston)
  • Texas Special (St. Louis–Springfield–Dallas–Ft. Worth, with through service to Austin–San Antonio)
  • Will Rogers (St. Louis–Oklahoma City/Wichita by day, 1936–1965; with through service northbound out of St. Louis to Chicago via the Alton Railroad or Wabash Railroad)



A Frisco Gallery



Postcard photo of the interior of the Frisco Railroad shop at Springfield, Missouri, ca. 1910. (Frisco Railroad, Public domain, via Wikimedia Commons)

Postcard photo of the interior of a Frisco steel dining car - service by Fred Harvey. Circa 1912. (Frisco Railroad, Public domain, via Wikimedia Commons)

Photo of a mallet compound locomotive of the St. Louis and San Francisco Railway (Frisco). The engine was the largest of its type at the time. September 1913. (Fred Harvey, Public domain, via Wikimedia Commons)

Postcard depiction of a 4-8-2 steam locomotive used for passenger service on the Frisco Railway, ca. 1946. (Frisco Railway, Public domain, via Wikimedia Commons)

Postcard photo of Frisco locomotive No. 4503, a 4-8-4 "Northern" produced by Baldwin for the railroad in 1943, in "Frisco Fast Freight" livery. (Frisco Railroad, Public domain, via Wikimedia Commons)

Postcard depiction of Frisco Railroad's steam locomotive No. 4305, 1943. (Frisco Railroad, Public domain, via Wikimedia Commons)

Postcard depiction of a dining car on the Frisco Railway, ca. 1930's. (Frisco Railway., Public domain, via Wikimedia Commons)

Frisco lounge car with fireplace on the famous Kansas City-Florida Special. (Midwest Map Co., Aurora, MO, Public domain, via W. Lenheim Collection)

Postcard photo of a Frisco 4-6-4 streamlined steam locomotive. March 21, 1946. (Frisco Railway, Public domain, via Wikimedia Commons)



Frisco Business Car No. 3, formerly "Oklahoma", built in 1912 as a Buffer-Club-Coach by the Pullman Company. Rebuilt in 1924 to the latest in railroad executive accommodations. Shown here at the Kansas City RR Museum. Photo by William A. Keene. (© Mary Jayne's Railroad Specialties, Inc., Fair use, Title 17, Section 107, via W. Lenheim Collection)



Frisco No. 281, an FM ALT-100.6A at Okmulgee, OK, July 3, 1960. Photo courtesy Walter R. Evans. (© Mary Jayne's Railroad Specialties, Inc., Fair use, Title 17, Section 107, via W. Lenheim Collection)

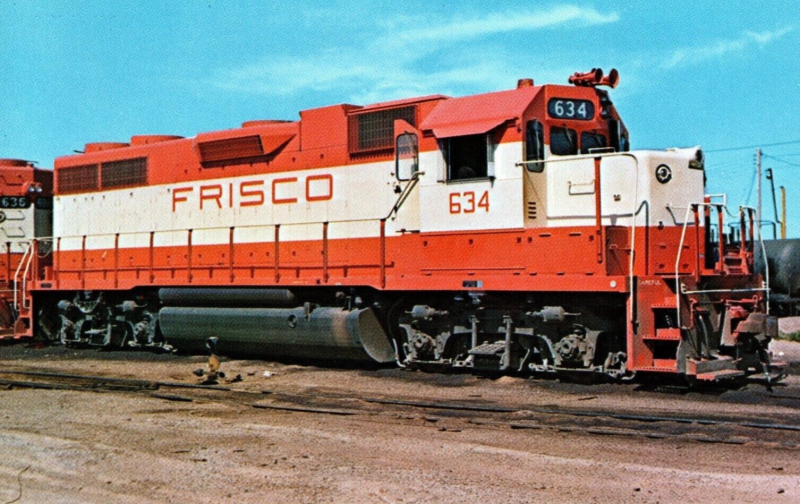

Frisco EMD GP38 No. 634, April 20, 1971. Photo by George Goodhead, Jr. (Audio-Visual Design, Earlton, NY, Public domain, via W. Lenheim Collection)

Luxury at no extra cost - Frisco Chair Lounge Car. (Midwest Map Co., Aurora, MO, Public domain, via W. Lenheim Collection)



Air-conditioned Lounge Car on the Frisco Line's crack train, "The Meteor", between St. Louis, Tulsa, and Oklahoma City. Luxuriously furnished, tastily decorated, and unusually comfortable. . .Cool in summer and agreeably warm in winter. (Midwest Map Co., Aurora, MO, Public domain, via W. Lenheim Collection)



Free pickup and delivery of less than carload shipments at all stations on the Frisco. (Midwest Map Co., Aurora, MO, Public domain, via W. Lenheim Collection)

Frisco dining cars reflect an atmosphere of refinement and elegance  ̶  food is the finest the markets afford, and the prices are reasonable. All cars air-conditioned. (Midwest Map Co., Aurora, MO, Public domain, via W. Lenheim Collection)

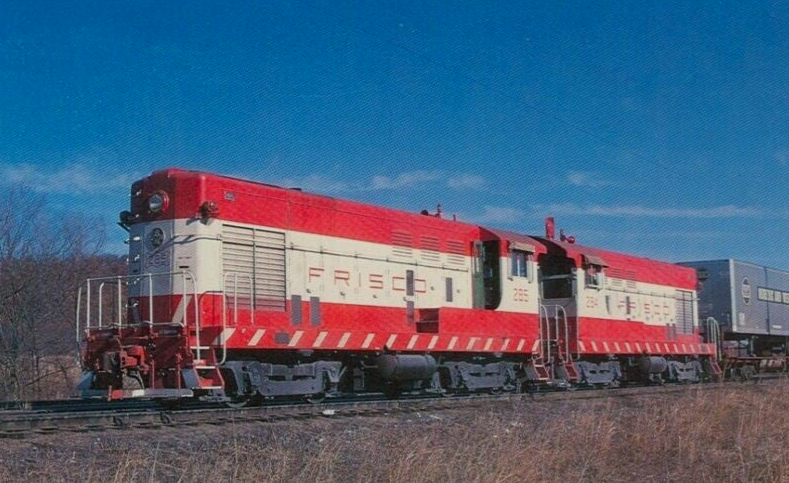

Frisco owned four FM H-44-10 switchers designed by Raymond Loewy. Two of the units were built in June 1951, and No. 285 is seen here in Tulsa, OK, February 1970. Photo by Mac Owen. (Audio-Visual Design, Earlton, NY, Public domain, via W. Lenheim Collection)

Frisco EMD E8 No. 2012 "Flying Ebony" at Springfield, MO, January, 1965. Photo courtesy Richard R. Wallin. (© Mary Jayne's Railroad Specialties, Inc., Fair use, Title 17, Section 107, via W. Lenheim Collection)



Frisco Caboose No. 1776 at Tulsa, OK, commemorating the U.S. Bicentennial. Photo by Mac Owen. (Audio-Visual Design, Earlton, NY, Public domain, via W. Lenheim Collection)

Frisco EMD E7 No. 2005 "Winchester", with E8 grills, at Springfield, MO, October 28, 1961. Photo by Richard R. Wallin. (Audio-Visual Design, Earlton, NY, Public domain, via W. Lenheim Collection)

Frisco's "Oklahoman" 20 miles west of St. Louis on the way to Tulsa and Oklahoma City. Photo by Richard R. Wallin. (© Mary Jayne's Railroad Specialties, Inc., Fair use, Title 17, Section 107, via W. Lenheim Collection)



Frisco EMD SW-1500 No. 358 at Tulsa, Oklahoma, June 22, 1980. Photo credit: Mel Lawrence. (© Mary Jayne's Railroad Specialties, Inc., Fair use, Title 17, Section 107, via W. Lenheim Collection)

Four Frisco F7's on the ready track at Amory, Mississippi, May 22, 1962. Photo by William B. Gwaltny. (© Mary Jayne's Railroad Specialties, Inc., Fair use, Title 17, Section 107, via W. Lenheim Collection)



Frisco 280, a Fairbanks-Morse H-10-44 at Tulsa, OK. Photo by Mac Owen. (Audio-Visual Design, Earlton, NY, Public domain, via W. Lenheim Collection)



Former Frisco lines today

The core of the former Frisco system continues to be operated by BNSF Railway as high-density mainlines. Other secondary and branchlines have been sold to shortline operators or have been abandoned altogether.

  • Kansas City – Springfield – Memphis – Birmingham: Operated by BNSF
  • St. Louis – Springfield – Tulsa – Dallas: Operated by BNSF
  • Fort Scott, Kansas, to Afton, Oklahoma: Operated by BNSF
  • St. Louis to Memphis, Tennessee: Operated by BNSF
  • Tulsa, Oklahoma, to Avard, Oklahoma: Operated by BNSF
  • Fredonia, Kansas, to Cherryvale, Kansas, to Columbus, Kansas: Operated by South Kansas and Oklahoma Railroad
  • Cherokee, Kansas, to Pittsburg, Kansas: Operated by South Kansas and Oklahoma Railroad
  • Fredonia, Kansas, to Ellsworth, Kansas: Abandoned
  • Cherokee, Kansas, to Cherryvale, Kansas: Abandoned
  • Monett, Missouri, to Fort Smith, Arkansas: Operated by Arkansas and Missouri Railroad
  • Lakeside, Oklahoma, to Hope, Arkansas: Operated by Kiamichi Railroad (Genesee & Wyoming Inc.)
  • Tulsa (Sapulpa), Oklahoma, to Oklahoma City: Operated by Stillwater Central Railroad
  • Oklahoma City to Snyder, Oklahoma: Operated by Stillwater Central Railroad
  • Snyder, Oklahoma, (Long Siding) to Quanah, Texas: Operated by BNSF
  • Enid, Oklahoma, to Frederick, Oklahoma: Operated by Grainbelt/Farmrail
  • Amory, Mississippi, to Pensacola, Florida: Operated by Alabama and Gulf Coast Railway (RailAmerica)
  • Springfield to Kansas City (via Clinton)(two routes): Abandoned
  • Monett (Pierce City) to Carthage, Missouri: Out of service
  • Carthage, Missouri, to Wichita, Kansas: Mostly abandoned
  • Chaffee, Missouri, to Poplar Bluff, Missouri, to Hoxie, Arkansas (Hoxie Sub): Abandoned



Surviving equipment

Steam locomotives

  • Frisco 73, a 2-6-0 "Mogul" built by Baldwin in 1916. It has 19-inch cylinders and 49.5-inch driving wheels. Numbered as 34 when Frisco acquired its owner, the Jonesboro, Lake City and Eastern Railroad in 1925, the locomotive was renumbered to 73 and kept by the Frisco until sold on September 19, 1945, to the Delta Valley and Southern Railway, a short line operator in northeast Arkansas. It is preserved on the Lee Wesson Plantation in Victoria, Arkansas under the Delta Valley & Southern Locomotive No. 73 name with no visible numbers on the cab or tender, but with the original Frisco raccoon-skin-shaped number board and "73" on its nose.
  • Frisco 76 and Frisco 77, 2-8-0 Consolidation-type engines built as Numbers 40 and 41 by the Baldwin Locomotive Works in December, 1920 for the Jonesboro, Lake City and Eastern Railroad. When that line became part of the Frisco, the locomotives were re-numbered as 76 and 77. After performing freight service for years, both engines were sold in 1947 to the Mississippian Railway where they retained the Frisco numbers. Following several further changes in ownership for each engine, No. 76 is now owned by the Oakland B&O Museum in Oakland, Maryland, where it has been renumbered and re-lettered as the Baltimore & Ohio 476, and No. 77 is now with Alberta Prairie Railway in Stettler, Alberta, where it pulls excursion trains and has been renumbered back to 41.
  • Frisco 1351, built in 1912 as a 2-8-0 Consolidation (Frisco 1313), and converted by Frisco to a 2-8-2 Mikado in November 1943. Now on static display in Collierville, Tennessee.
  • Frisco 1352, built by ALCO in 1912 as a 2-8-0 Consolidation (Frisco 1321), and converted by Frisco in June 1944 to a 2-8-2 Mikado. Disassembled in Taylorville, Illinois; awaiting restoration to operating condition.
  • Frisco 1355, built by ALCO in 1912 as a 2-8-0 Consolidation (Frisco 1318), and converted in October 1945 to a 2-8-2 Mikado in Frisco's main shops in Springfield. Given that the 1350–1356 series were both the last steam locomotives rebuilt by Frisco and the last Mikados built anywhere in the United States, No. 1355 is the last surviving. Following refurbishment by Frisco, it was donated to the City of Pensacola and moved to a location on Garden Street in that city in March 1957, near the site of the SLSF passenger depot demolished in 1967. Additional refurbishment was done by the Naval Brig Staff of the Pensacola Naval Air Station in late 1991 and early 1992.
  • Frisco 1501, one of thirty 4-8-2 Mountain-type locomotives purchased from Baldwin for freight and passenger service. The 1500 series, all oil-burners, arrived in three batches, being Nos. 1500–1514 in the spring of 1923, Nos. 1515–1519 in 1925, and Nos. 1520–1529 in the summer of 1926. No. 1501 has been on static display in Schuman Park, Rolla, MO since 1955. Several parts from Frisco 1501 were donated to Frisco 1522 to make/keep 1522 operational.
  • Frisco 1519, a Baldwin 4-8-2 Mountain-type delivered in 1925, now at the Railroad Museum of Oklahoma in Enid, Oklahoma.
  • Frisco 1522, a Baldwin 4-8-2 Mountain-type delivered in 1926. It was at the National Museum of Transportation in St. Louis, Missouri, until 1988, when it began pulling excursions. In 2002, it was returned to the Museum of Transportation.
  • Frisco 1526, a Baldwin 4-8-2 Mountain-type delivered in 1926, located at the Museum of the Great Plains in Lawton, Oklahoma.
  • Frisco 1527, a Baldwin 4-8-2 Mountain-type delivered in 1926. On static display in Langan Park in Mobile, Alabama since 1964.
  • Frisco 1529, a Baldwin 4-8-2 Mountain-type, delivered in 1926. The locomotive pulled a train carrying President Franklin D. Roosevelt in 1934, and was eventually the last steam engine to make a passenger run for Frisco. Now on static display in Frisco Park in Amory, Mississippi.
  • Frisco 1615 and the other locomotives in Frisco-series 1600 were 2-10-0 Russian locomotive class Ye (Russian Decapods) with a 5’ gauge built for the Tsarist government in Russia. When that government was overthrown before delivery, the units were rebuilt as standard-gauge locomotives (by fitting extra-wide tires on the wheels and sold through the United States Railroad Administration to American railways. Frisco acquired 20 of the units (17 directly from the government, 3 from other companies), which became Nos. 1613 to 1632. Of these, Nos. 1615, 1621, 1625, 1630 and 1632, all coal-burning, were later sold in the 1951 timeframe to Eagle-Picher and used to haul lead and zinc from the Picher Field to the E-P mill in Miami, Oklahoma. All these units were placed in storage by 1957 when that operation was closed. By 1964, homes were being sought for all of these engines. Frisco 1615, built in 1917 as part of Frisco’s first batch of engines (Nos. 1613–1623) which were constructed by ALCO’s Richmond Locomotive Works in the fall of 1917 and spring of 1918, was acquired by the City of Altus, Oklahoma, on October 22, 1967, and remains on static display there.
  • Frisco 1621 is another 2-10-0 Russian Decapod, built in 1918. On static display at the National Museum of Transportation in St. Louis, Missouri.
  • Frisco 1625 is another 2-10-0 Russian Decapod, built in 1918 at ALCO's Schenectady Locomotive Works. Now on static display at the Museum of the American Railroad in Frisco, Texas.
  • Frisco 1630 is another 2-10-0 Russian Decapod, part of Frisco's batch (Nos. 1626–1632) which were all constructed by Baldwin in 1918. It has been in excursion service at the Illinois Railway Museum in Union, Illinois, since 1967, and is considered by the museum as their most famous locomotive.
  • Frisco 1632 is another 1918 Baldwin 2-10-0 Russian Decapod. It was donated to the Smoky Hill Railway and Historical Society in Ottawa, Kansas, in 1964, and was moved in 1991 to the Belton, Grandview and Kansas City Railroad in Belton, Missouri, where it is on static display.
  • Frisco 3695 is a Frisco-series 3600 locomotive, which were 0-6-0 switch engines built between August, 1883, and July, 1906. Ninety-five in number, the only survivor is No. 3695, built in July, 1906 by the Baldwin Locomotive Works and serving Frisco thirty-one years before being sold to the Scullin Steel Company and renumbered No. 95. The engine was donated in 1956 and is on display at the National Museum of Transportation in St. Louis.
  • Frisco 3749 is a Frisco-series 3700 locomotive, which was a class of forty-six 0-6-0 switch engines built between 1906 and 1910. However, another source says No. 3749 in particular was built in 1913, by the Baldwin Locomotive Works. Retired from Frisco service in 1952, the engine was leased to the Atmore Prison Farm in Atmore, Alabama, before being used in 1956 as a prop in an MGM movie, The Wings of Eagles, starring John Wayne. After later sitting idle for a number of years and being sold for scrap, the engine was moved to the Church Street Station in Orlando, Florida, as a static display. In 2012 it was acquired and put on display by the Florida Railroad Museum.
  • Frisco 4003, a coal-burning 2-8-2 Mikado built in 1919 by Lima and on static display at the Fort Smith Trolley Museum in Fort Smith, Arkansas.
  • Frisco 4018, a coal-burning 2-8-2 Mikado built in 1919 by Lima which is on static display at Sloss Furnaces in Birmingham, Alabama. This locomotive has the distinction of being the last Frisco steam locomotive in regular service, completing its final run (a five-mile trek from Bessemer to Birmingham, Alabama) on February 29, 1952.
  • Frisco 4500, a 4-8-4 oil-fired Northern-type built in 1942, on static display in Tulsa, Oklahoma, being a locomotive which pulled the Frisco's crack Meteor passenger train.
  • Frisco 4501, an oil-fired 4-8-4 on static display at the Museum of the American Railroad in Frisco, Texas, also a former Meteor locomotive.
  • Frisco 4516, 4-8-4 Northern-type coal-fired locomotive on static display at Missouri State Fairgrounds, Sedalia, Missouri, also known as "Old Smokie."
  • Frisco 4524, another wartime 4500-series 4-8-4 coal-fired Northern-type, donated to Springfield, Missouri, in November 1954, now on static display at the Railroad Historical Museum inside Grant Beach Park in Springfield, and wearing the "Frisco Faster Freight" paint scheme. Being the last engine of the last group of steam locomotives that Frisco purchased, this engine has the distinction of being the last steam locomotive built for the Frisco.



Equipment for the Texas Special, 1947.

(GM-EMD, via W. Lenheim Collection)



Diesel locomotives

  • Frisco 200, a Baldwin VO-1000 switcher and Frisco’s very first diesel locomotive of any kind, was sold to the Navy, which in 2015 sold it to the Tennessee Valley Railroad Museum located in Chattanooga, Tennessee, which has it stored out of service. The U.S. Navy acquired a number of the Frisco VO-1000 diesels, reportedly including Numbers 200-203 and 205-206. Other units may still be in use by the Navy, or may have been sold to other parties.
  • Frisco 261 is an EMD NW2, that later became Burlington Northern No. 421. It is currently in its Burlington Northern livery and is in the collection of the Great Plains Transportation Museum in Wichita, KS.
  • Frisco 814 is an operational General Motors EMD F9A, located at the Oklahoma Railway Museum in Oklahoma City. (Note: While the locomotive has been lettered by the museum as Frisco, this was not a Frisco unit. It was originally purchased in 1954 by the Northern Pacific Railway, Road Number 7003-D, and became the Burlington Northern Railroad 814 due to a merger. The Frisco's only operation of F9A units occurred when two of the line's EMD F3A units were converted into F9A units.)

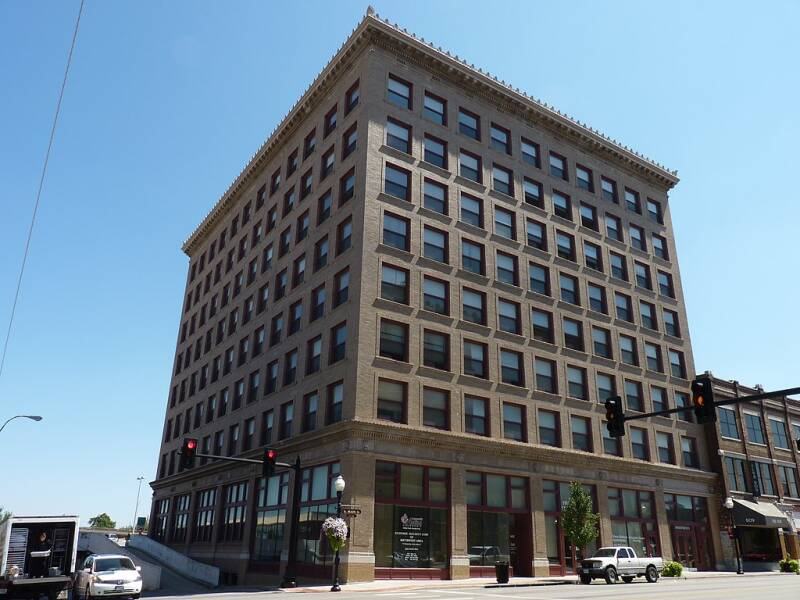

The St. Louis and San Francisco Railroad Building in Joplin, Missouri, 2010. Now known as the Frisco Apartments.

(AbeEzekowitz, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons)



Buildings and structures

Multiple surviving buildings, structures and locations associated with the Frisco are on the National Register of Historic Places, including the St. Louis and San Francisco Railroad Building in Joplin, Missouri, the St. Louis-San Francisco Railroad Depot in Poplar Bluff, Missouri, the St. Louis and San Francisco Railway Depot in Comanche, Texas, the Beaumont St. Louis and San Francisco Railroad Retention Pond, and the Beaumont St. Louis and San Francisco Railroad Water Tank. Frisco Lake, a small lake in Rolla, Phelps County, Missouri, was named for and owned by the Frisco. The Frisco Building, being the former Frisco headquarters in Springfield built in 1910 and now known as the Landmark Building, is an official City of Springfield counsel-approved landmark. The Frisco Bridge at Memphis was the first bridge over the Mississippi River south of St. Louis, and the third longest bridge in the world at the time of its dedication on May 12, 1892; it is now listed as an National Historic Civil Engineering Landmark.



4-4-0s

Locomotives with 4-4-0 wheel arrangements, known as the "American" type because they were considered for many years to be the standard in American locomotives, originally served Frisco in great numbers. In July, 1903, the Frisco had 159 4-4-0's in service, built by twenty-five different companies. Frisco renumbered its units in that year, assigning the 4-4-0's either numbers between 1-299 (140 units), or 2200-series numbers (19 units). The oldest Frisco 4-4-0 locomotive was No. 47, built in 1869 by Hinkley Locomotive Works. The last serving 4-4-0's were retired in 1951.



4-6-0s

Even more numerous on the Frisco were 4-6-0 "Ten-wheelers." The first such engines entered the Frisco system in 1870. By 1903, Frisco had a fleet of 430 such locomotives, which were renumbered that year into seven class series, using 400, 500, 600, 700, 1100, 1400, and 2600-series numbers. The last 4-6-0s on the Frisco roster were the 1400 series, with the last engine to be retired from service being No. 1409, dismantled and sold for scrap in November, 1951.



Doodlebugs

Frisco-series 2100 equipment consisted of self-propelled rail motor-cars, mostly gas-electric models, with a few gas-mechanical models given 3000-series numbers. These railway vehicles were commonly known as "Doodlebugs" for their insect-like appearance and the slow speeds at which they would doddle or "doodle" down the tracks. These were used to service various low-volume branch lines in the Frisco organization. An initial order for ten was placed in 1910, with seven more arriving by 1913, putting Frisco in the forefront of gas-electric operation at that time. The initial batch, numbered 2100 to 2109, included nine baggage-coach combinations, as well as one baggage-mail-coach unit. Frisco's peak year for motor-car mileage was 1931, and its fleet at that time included twenty-three gas-electrics, five gas-mechanical cars, four trailer coaches, and six mail-baggage units. The final Frisco run of a Doodlebug was on November 8, 1953, when No. 2128 traveled from Ardmore, Oklahoma, for the four hour trip to Hugo, Oklahoma.



Frisco Series 4300 and 4400

Two series of Frisco locomotives not surviving were Frisco 4300s and 4400s. These were all 4-8-2 units assembled by Frisco itself in the late 1930s to the early 1940s from other locomotives. Eleven, being units 4300 through 4310, were built in 1936 and 1937 from used 2-10-2 parts. They had 27 × 30 cylinders, 70" drivers, a boiler pressure of 250 psi, and a tractive effort of 66,400 lbs, weighing 431,110 pounds. Another twenty-three 4-8-2s were built using the boilers from 2-10-2s between 1939 and 1942. Units 4400 through 4412 were oil-burning, while units 4413 through 4422 burned coal. These locomotives had 29 × 32 cylinders, 70" drivers, a boiler pressure of 210 psi, and a tractive effort of 68,600 lbs. Weighing in at 449,760 pounds, they were the heaviest Mountain-type locomotives ever built.



Dieselization

Frisco’s first acquisition of diesel locomotives came in November 1941, when the line received five Baldwin VO-1000 switchers of a thousand-horsepower each. Frisco started a serious dieselization program in 1947, which took about five years. When the period of steam power ended for Frisco in February, 1952 with the last run of steam engine 4018, the Frisco’s diesel fleet included seventeen 2,250-HP passenger, six 2,000-HP passenger, twelve 1,500-HP combination freight and passenger, one hundred and twenty-three 1,500-HP freight, one hundred and thirty-three 1,500-HP general purpose, eleven 1,000-HP general purpose, and one hundred and five yard-switcher units, for a total of 407 diesel locomotives. At that time, the Frisco became the largest Class I railroad in the U.S. to be operating strictly with diesel power.

The Frisco gave names to its 2000-series diesel passenger locomotives, EMD E7 and (mostly) EMD E8 units, using the theme of famous horses. These included racehorses such as Gallant Fox (No. 2011), Sea Biscuit (No. 2013), and Citation (No. 2016). However, other horses also made the list: for instance, when No. 2022 was rebuilt after a wreck, it was given the name of Champion, after ex-Frisco-employee Gene Autry’s trusty steed in the movies.



Frisco Silver Dollar Line

The amusement park Silver Dollar City in Branson, Missouri, runs multiple diesel-fired or heating oil-fired steam trains around the park on its 2-foot-gauge rail line, known as the Frisco Silver Dollar Line. The Frisco operated in that part of the country, and supplied construction help to the Park, along with the rails and ties, back when this line was being built in 1962. Perhaps for these reasons, the trains sport the Frisco name and logo. However, this was never an actual Frisco rail line, and the steam locomotives started life as industrial engines on German intra-plant railroads, not as actual rolling stock on the Frisco.



Predecessors

The following companies were predecessors of the Frisco:

  • Pacific Railroad, charter granted by Missouri on March 3, 1849
  • Southwest Pacific Railroad, John C. Frémont reorganized in August 1866
  • Atlantic and Pacific Railroad, incorporated on July 27, 1866
  • Arkansas and Choctaw Railway; 1895.



1899 poster showing a boy and a girl in a SLSF waiting room.

(Strobridge Lithographing Co., Cincinnati, Ohio, U.S.A. for St. Louis and San Francisco Railway, Public domain, via Wikimedia Commons)



Frisco 1522 has been preserved and restored. In this picture,

the locomotive is sitting in Arkansas City, Kansas.

(Darrel Drumm, Public domain, via Wikimedia Commons)



Acquisitions

The following railroads were acquired or merged into the Frisco:

  • Missouri and Western Railway: 1879
  • St. Louis, Arkansas and Texas Railway: 1882
  • Springfield and Southern Railroad: 1885
  • Kansas City and Southwestern Railroad: 1886
  • Fayetteville and Little Rock Railroad: 1887
  • Fort Smith and Southern Railway: 1887
  • Kansas City, Osceola and Southern Railway: 1900
  • Arkansas and Oklahoma Railroad: 1901
  • St. Louis, Oklahoma and Southern Railway: 1901
  • Kansas City, Fort Scott and Memphis Railway: 1901
  • Arkansas Valley and Western Railway: 1907
  • Blackwell, Enid and Southwestern Railway: 1903
  • Red River, Texas and Southern Railway: 1904
  • Oklahoma City and Texas Railroad: December 19, 1904
  • Crawford County Midland Railroad: June 20, 1905
  • Oklahoma City and Western Railroad: 1907 – December 19, 1910
  • Sapulpa and Oil Field Railroad: 1917
  • West Tulsa Belt Railway: 1922
  • Jonesboro, Lake City and Eastern Railroad:1924
  • Pittsburg and Columbus Railway (Pittsburg, Kansas): 1925–1926
  • Springfield Connecting Railway: May 11, 1926
  • Kansas City and Memphis Railway and Bridge Company: 1928
  • Paris and Great Northern Railroad: July 21, 1928
  • Kansas City, Clinton and Springfield Railway: September 1, 1928
  • Alabama, Tennessee and Northern Railroad: December 28, 1948
  • Central of Georgia Railway: 1956. The Interstate Commerce Commission did not approve the purchase, so the Frisco sold it to Southern Railway in 1961.
  • Northeast Oklahoma Railroad: December 27, 1963 (Division dissolved February 27, 1967; Roads involved include: NEO RR, Oklahoma, Kansas and Missouri Interurban Railroad, Joplin and Pittsburg Railway and Oklahoma Traction Company)

Please note this list is incomplete.



Frisco 1621 on display at the National Museum of Transportation outside St. Louis, Missouri.

(RFM57, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons)



Asset absorptions

The following is a list of partial or full asset absorptions, many times through bankruptcy courts or creditors. In some cases the Frisco was a creditor. Assets can include mineral rights, property, track and right of way, trains, bonds, mortgages, etc.

  • St. Louis, Wichita and Western Railway: 1882
  • St. Louis and Oklahoma City Railroad: 1898
  • Kansas Midland Railroad: October 23, 1900
  • Oklahoma City Terminal Railroad: 1900–1903
  • Fort Smith and Van Buren Bridge Company: 1907
  • Ozark and Cherokee Central Railway: 1907
  • St. Louis, Memphis and Southern Railroad: 1907
  • Sulphur Springs Railway: 1907
  • Joplin Railway: 1910
  • Fort Worth and Rio Grande Railway: 1919–1937
  • Fayetteville and Little Rock Railroad: 1926
  • Little Rock and Texas Railway: 1926
  • Kansas City, Memphis and Birmingham Railroad: September 1, 1928
  • Muscle Shoals, Birmingham and Pensacola Railroad: 1928–1947
  • Miami Mineral Belt Railroad: 1950
  • St. Louis, Kennett and Southeastern Railroad: 1950
  • St. Louis, San Francisco and Texas Railway: 1963–1964
  • Birmingham Belt Railroad: 1967 (liquidation of BB RR and distribution of assets)



Overview

Headquarters: Springfield, Missouri, U.S.
Reporting mark: SLSF
Locale: Alabama, Arkansas, Florida, Kansas, Mississippi, Missouri, Oklahoma, Tennessee, Texas
Dates of operation: 1876–1980.
Successor: Burlington Northern
Technical
Track gauge: 4 ft 8+1⁄2 in (1,435 mm) standard gauge



See Also:

Railroads A-Z
