The CB&Q Railroad's Pioneer Zephyr No. 9900 at Lincoln, Nebraska, 1959.

 This photo is for sale. Click HERE for more information.

(Dan Pope Collection / RMP Archive)


Pioneer Zephyr drumhead.


CBQ 9900 redirects here.

The Pioneer Zephyr is a diesel-powered trainset built by the Budd Company in 1934 for the Chicago, Burlington & Quincy Railroad (CB&Q), commonly known as the Burlington Route. The trainset was the second internal combustion-powered streamliner built for mainline service in the United States, the first such train powered by a diesel engine, and the first to enter revenue service. The trainset consists of one power/storage car, one baggage/RPO/buffet/coach car, and one coach/observation car. The cars are made of stainless steel, permanently articulated together with Jacobs bogies. The construction incorporated recent advances such as shotwelding (a specialized type of spot welding) to join the stainless steel, and unibody construction and articulation to reduce weight. It was the first of nine similarly built trainsets made for Burlington and its technologies were pivotal in the subsequent dieselization of passenger rail service. Its operating economy, speed, and public appeal demonstrated the potential for diesel-electric-powered trains to revitalize and restore profitability to passenger rail service that had suffered a catastrophic loss of business with the Great Depression. Originally named the Burlington Zephyr during its demonstration period, it became the Pioneer Zephyr as Burlington expanded its fleet of Zephyr trainsets.

On May 26, 1934, it set a speed record for travel between Denver and Chicago when it made a 1,015.4-mile (1,633 km) non-stop "Dawn-to-Dusk" dash in 13 hours 5 minutes at an average speed of almost 78 mph (124 km/h). For one section of the run it reached a speed of 112.5 mph (181 km/h). The historic dash inspired a 1934 film ("The Silver Streak") and the train's nickname, "The Silver Streak".

The train entered regular revenue service on November 11, 1934, between Kansas City, Missouri, Omaha, Nebraska, and Lincoln, Nebraska. It operated this and other routes until its retirement in 1960, when it was donated to Chicago's Museum of Science & Industry, where it remains on public display. The train is generally regarded as the first successful streamliner on American railroads.


Postcard photo of the Pioneer Zephyr, circa 1934, 1935. Click to enlarge. (Burlington Route, Public domain, via Wikimedia Commons)

Edward Budd Company ad with a photo of the fourth car for the Pioneer Zephyr. Burlington ordered the car because of increased demand for seating on the original train. This car was produced at Budd while the company was building the Mark Twain Zephyr for the Burlington, 29 June 1935. Click to enlarge. (Edward Budd Company, Philadelphia, Public domain, via Wikimedia Commons)

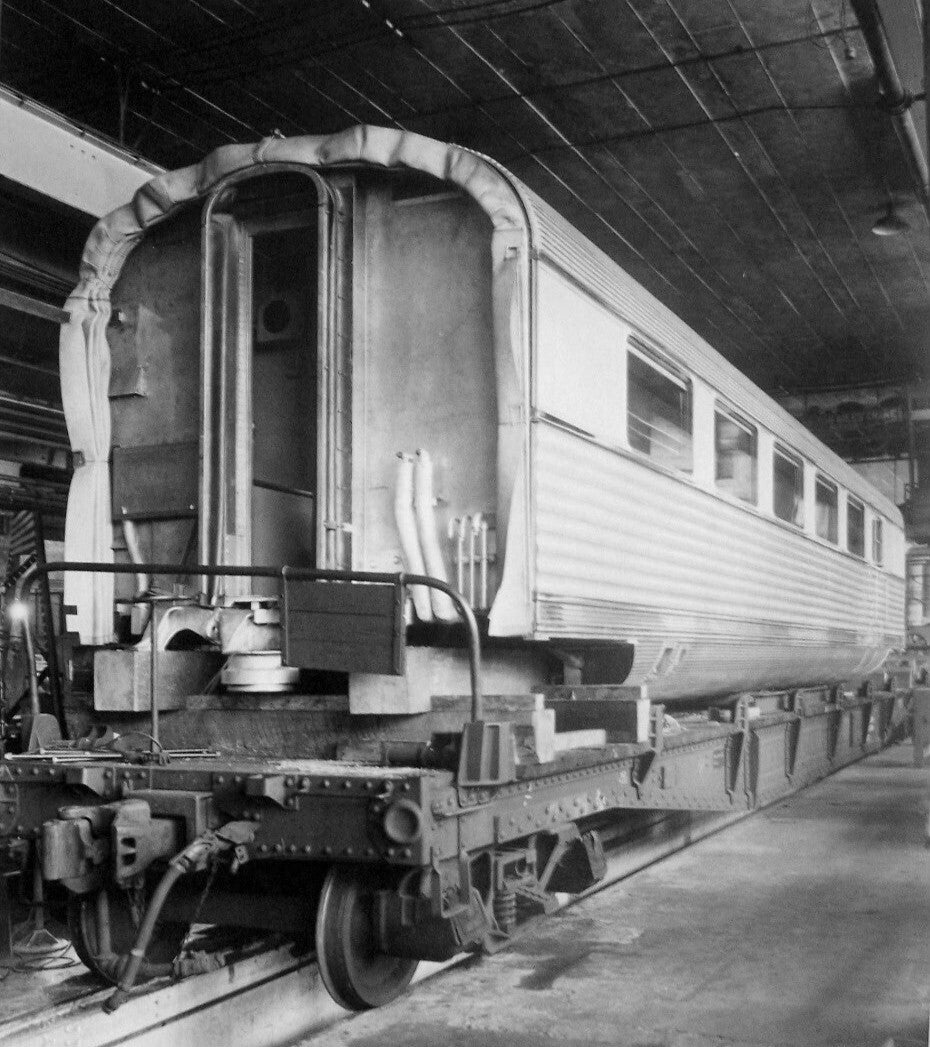

Photo of a Zephyr coach on a flatcar at the Budd Company plant in Philadelphia. The articulated coupling is visible. This is now known to be the fourth car of the Pioneer Zephyr. The Burlington ordered the additional car because of ridership demand during the time Budd was building the Mark Twain Zephyr for the railroad. June 13, 1935. (Edward Budd Company, Philadelphia,  Public domain, via Wikimedia Commons)

Concept and construction

In the early 1930s, the Great Depression caused a catastrophic loss of business for American railroads. Passenger service had been losing ridership to automobile travel since the mid-1920s, making faster, more efficient service imperative for railroads to compete. Railroads needed to lower operating costs of passenger service and boost ridership with a more modern image for the traveling public, to restore profitability to passenger service.

One of the railroad presidents who faced this challenge was Ralph Budd, formerly of the Great Northern Railway and then president of the Chicago, Burlington & Quincy Railroad (Burlington), who sought to develop a more efficient high speed train to replace conventional steam-powered heavyweight equipment. The project hinged on two major elements, developing lighter railcars and developing an internal combustion driven power system adequate for high speed service.

In 1932 Ralph Budd met Edward G. Budd (no relation), an automotive steel pioneer who was founder and president of the Budd Company. Edward Budd was demonstrating his new Budd-Michelin rubber-tired rail cars built of stainless steel. Pneumatic-wheeled railcars never found popularity for actual service in the US — they tended to derail — but they demonstrated the successful construction of lightweight stainless steel unibody railcars. Some power-trailer car sets in that series articulated with Jacobs bogies shared between cars embodied the basic elements of car construction that would be used to build a lightweight streamliner train.

Stainless steel provided many benefits over traditional wood and hardened steel for railroad carbodies; it was a lighter and stronger material, and its natural silver appearance and resistance to corrosion meant that it would not have to be painted to protect it from the weather. Since the carbody was much lighter than similar cars, it would be able to carry a higher revenue load for the same cost.

In developing the Budd-Michelin railcars, the Budd Company used the formed steel technology in which they were industry pioneers and solved the most difficult problem in using stainless steel for railcar construction: developing a welding technique that would not compromise the strength and corrosion resistance of the stainless steel. On August 20, 1932, Earl J. Ragsdale, an engineer at the Budd Company, filed a patent application for a "Method and product of electric welding"; on January 16, 1934, the United States Patent & Trademark Office (USPTO) granted US patent 1,944,106 to the Budd Company. Shotwelding, as Ragsdale termed his method, involved automatic control of the timing of individual spot welds. In spot welding, the two pieces of metal that are to be joined are pressed together with an electrode on each side of the joint. A very high electric current is passed through the joint and fuses the two pieces of metal together. If a spot weld is heated too long, heat will spread from the weld at a middling temperature that weakens the stainless steel and compromises its corrosion-resistant properties unacceptably; Ragsdale's precisely-timed welds solved the problem. With their patented welding process at the core of stainless steel railcar construction, the cars produced by Budd were a truly unique product.

The articulated design of some Budd-Michelin cars, with trucks shared between adjacent cars, presented another opportunity for weight saving with the new train. On conventional passenger cars, each carbody rode upon a pair of trucks (pivot-mounted wheel-axle assembly), with one truck at each end. The articulation not only reduced the number of trucks under the train, but it also dispensed with the need for couplers between each of the carbodies, further reducing the train's weight. The concept was used by Budd engineer Walter B. Dean to build a train consisting of three semi-permanently attached cars. It did, however, mean that train lengths could not be easily changed by switching out cars.

The other major problem Ralph Budd faced was to find a powerplant adequate to drive a trainset at a speed competitive with the faster steam trains. The existing gasoline powerplants for motorized railcars were inadequate and gasoline engines showed limited potential for higher capacity hauling applications. Contemporary four-stroke marine and stationary diesel engines had low power-to-weight ratios and were only efficient under a narrow range of operating conditions, rendering them unsuitable for rail transport. Spark-ignited petroleum distillate engines also suffered from low power-to-weight ratios along with being maintenance-intensive and smokey. The solution to Budd's problem presented itself in the new two-stroke diesel engines developed by General Motors' Winton Engine Corporation, which represented a factor-of-four improvement in power-to-weight ratio over the previous generation of diesel engines. Their efficient operating range was also improved, owing largely to improvements in fuel injection developed by GM and Winton. A diesel-electric system driven by a prototype of the new design was used to power General Motors' automotive assembly exhibit at the 1933 Century of Progress Chicago World's Fair. Budd saw the compact, efficient system in action, saw a major piece of his lightweight train puzzle fall into place, then approached GM about adapting their engine for rail propulsion. GM accepted the challenge of developing their engine into a production series, introduced as the Winton 201A in early 1934. The result was a diesel-electric drive system developed by GM's subsidiary Electro-Motive Corporation, powered by an eight-cylinder, 600 hp Winton 201A diesel engine, installed in a new three car stainless steel streamliner within a year. In 1933 a Century of Progress exhibit inspired the Zephyr streamliner; the following year the new Zephyr streamliner inspired the Century of Progress fair and the rest of the country.

The exterior design of the train was left to aeronautical engineer Albert Gardner Dean (Walter Dean's younger brother) who designed the sloping nose shape, with architects Paul Philippe Cret and John Harbeson, devising a way to strengthen and beautify the sides with the train's horizontal fluting. On April 15, 1936, Colonel Ragsdale, Walter Dean and Albert Dean, filed patent applications for a "Rail Car Front End Construction". On September 23, 1941 the USPTO granted US patents 2,256,493 and 2,256,494 to the Budd Company. The streamlining extended to the undercarriage as well to reduce drag.

Budd took the task of naming the train very seriously. He wanted a name that started with the letter Z because this train was intended to be the "last word" in passenger service; Budd and his coworkers looked up the last words in their dictionaries, but neither zymurgy nor zyzzle conveyed the meanings that Budd was looking for. The name of the new train came from The Canterbury Tales, which Budd had been reading. The story begins with pilgrims setting out on a journey, inspired by the budding springtime and by Zephyrus, the gentle and nurturing west wind. Budd thought that would be an excellent name for a sleek new traveling machine—Zephyr.

The first Zephyr (9900) was completed by the Budd Company on April 9, 1934.

The first car, which measured 71 feet 5 inches (21.77 m), contained the cab, engine compartment and a mail storage area. The train's engineer sat in a small compartment in the nose of the train, directly in front of the prime mover. The main generator was mounted to the prime mover and sat between the engineer's and fireman's seats in the front of the power car. Behind the engine in the power car was a 19-foot long (5.8 m) storage-mail compartment. The second car, measuring 57 feet 8 inches (17.6 m) long, was a combination 30 ft (9.1 m) long express, checked baggage and railway post office section, followed by a short buffet and 20-passenger coach section. The third and final car in the train, measuring 63 feet 6 inches (19.35 m) long as originally built, was configured as half coach (40-passenger seats) and half observation car (12 passenger seats). As built, the train had 72 seats and could carry 50,000 pounds (22.7 tonnes) of baggage and express freight. After a series of demonstration runs, the trainset was christened the Burlington Zephyr on April 18, 1934, at the Pennsylvania Railroad's Broad Street Station in Philadelphia, Pennsylvania. That name lasted until it became the Pioneer Zephyr as Burlington put other Zephyr trainsets into service as named trains.

Following the Zephyr Budd built an identical trainset, the Flying Yankee, for the Boston and Maine railroad, and went on to build a series of larger and more powerful Zephyr trainsets for Burlington.


Interior Views of the Pioneer Zephyr


Cab with controls in the power car. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)

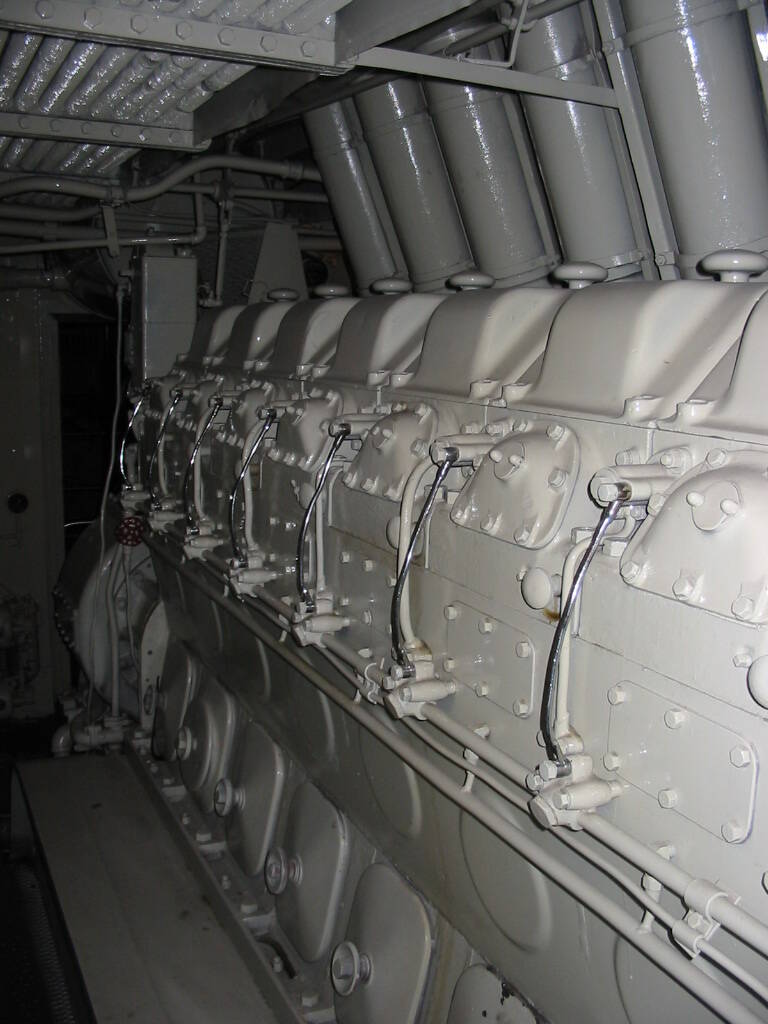

The engine in the power car. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)

Seats in open coach. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)

Observation lounge in the rear car. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)

The RPO section in the power car. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)

The coach seating area inside the Pioneer Zephyr, on display at the Museum of Science and Industry in Chicago. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)

Promotion: "Dawn-to-Dusk" dash

After its christening in Philadelphia, the train was taken on a three-week promotional tour of cities in the Northeast and Midwest. The train was open for viewing in several cities, with 24,000 people viewing it in Philadelphia, 50,000 in Rochester, New York, and more than 109,000 viewing it in New York City. In early May 1934, the train was driven back westward over the Pennsylvania Railroad's mainline to Chicago, and some parallel routes, exceeding 100 miles per hour (160 km/h) several times. At its stop in Dayton, Ohio, another 20,000 people viewed the train, and a "never-ending procession of visitors" viewed it on its stop in Indianapolis. It was then driven toward Denver for its last display in preparation for its next big promotion. It made additional promotional stops in other cities along the route, including Lincoln, Nebraska, where 21,000 people viewed the train. The tour stopped in 46 cities and had almost 485,000 people view the train at its many stops.

The train made a "Dawn-to-Dusk" dash from Denver to Chicago on May 26, 1934, in a publicity stunt timed to coincide with the opening day of the Century of Progress fair in Chicago. The railroad spared no expense in planning the operations. All other trains along the Zephyr's route were diverted to sidings and the turnouts were spiked into the proper alignment for the Zephyr's run. Track and maintenance of way workers checked every spike and bolt along the train's route to ensure that there would not be any problems, and temporary speed signs were installed along the route to warn the Zephyr's crew of curves that would be dangerous at high speeds. On the day of the dash, every road grade crossing was staffed by a flagger to stop automobile traffic ahead of the train and to ensure that the crossing was clear. Stations along the route were protected by local police officers and members of the American Legion and the Boy Scouts of America.

The train left Denver at 07:04 Central Daylight Time and at 20:09, 13 hours 5 minutes later, broke through the tape at the designated finish line at Halsted Street station, 1.8 miles west of Chicago Union Station. The train's average speed from start to finish was 77 mph (124 km/h); and had reached a speed of 112.5 mph (181 km/h). The non-stop 1,015 mile (1,633 km) trip exceeded the railroad's expectations in being 1 hour 55 minutes faster than was scheduled. The Burlington's contemporary passenger trains plied the same distance in around 25 hours.

Riding the train were Ralph Budd, Edward G. Budd, Harold L. Hamilton, president of the Electro-Motive Corporation, a number of reporters, some Burlington employees, members of the public, and Zeph, a burro that was contributed by a Colorado newspaper, the Rocky Mountain News, as a mascot for the train. The newspaper had described Zeph to the railroad as a "Rocky Mountain canary" so the train's crew had originally planned only enough space for a birdcage; when they found out it was not a bird, the railroad hastily built a pen in the baggage section and bought some hay for it. When asked about the burro, Ralph Budd replied "why not? One more jackass on this trip won't make a difference."

The train continued east from Halsted Station to the 1934 Century of Progress fair on the Lake Michigan shore, where it arrived for the "Wings of a Century" pageant on opening day. After its showing on the Wings of a Century stage, and one day on public display at the Fair, the train was taken on a 31-state, 222-city publicity tour. More than two million people saw the train before it entered revenue service. Part of this tour included a test run between Chicago and Minneapolis - Saint Paul, completing the test trip in just over six hours, a full five hours faster than the Burlington's fastest steam-powered train. Due to the Zephyr's success on this test run, the Burlington immediately ordered two more Zephyr trainsets that were dubbed the "Twin Zephyrs", starting the spread of the Zephyr brand.

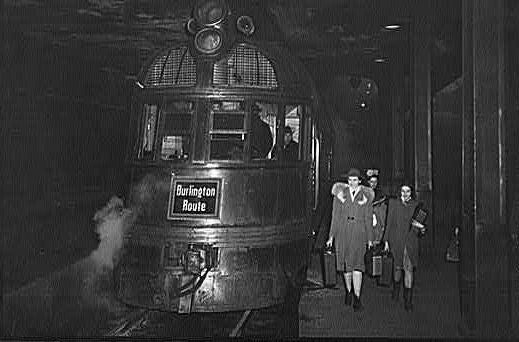

Chicago, Illinois. Passengers coming in on one of the Burlington Zephyrs at Union Station, February 1943. Click to enlarge. (Jack Delano, Public domain, via Wikimedia Commons)

Ad for Camel cigarettes with Jack Ford, the engineer of the Burlington Pioneer Zephyr's record-breaking Denver to Chicago run and the Pioneer Zephyr. Ford is shown as the train arrived at the Burlington's Century of Progress exhibit in Chicago in 1934. Click to enlarge. (R.J. Reynolds Tobacco Company., Public domain, via Wikimedia Commons)


Group photo of the "Dawn to Dusk Club", passengers who rode aboard the Pioneer Zephyr (including Zeph the burro) during its promotional, record-setting run from Denver to Chicago on May 26, 1934 to mark the Century of Progress World's Fair. Click to enlarge. (Library of Congress, via Wikimedia Commons)

Early Zephyr trains

Following the Pioneer Zephyr 9900, two identical trainsets, 9901 and 9902, were built and put into service as the Twin Cities Zephyr between Chicago and Minneapolis - Saint Paul in April 1935. The four car set 9903 entered service as the Mark Twain Zephyr between St Louis and Burlington, Iowa in October 1935. On May 31, 1936, the trainsets of the Pioneer Zephyr and the Mark Twain Zephyr, 9900 and 9903, were transferred to a new Chicago-Denver service called the Advance Denver Zephyr on a 16 hour schedule. Within a month they were replaced by two new six-car trains pulled by power units 9904 and 9905, named the Denver Zephyr. The six car sets 9904 and 9905 were replaced by the ten car sets 9906 and 9907 in October 1936, and replaced 9901 and 9902 on the Twin Cities run in December 1936. At that time, the 9901 was reassigned to a new service, the Sam Houston Zephyr, running between Fort Worth and Houston via Dallas on trackage jointly owned by the Chicago, Rock Island and Pacific Railroad. This was the first streamlined train in Texas, and was joined about a year later by the Texas Rocket on alternate timing. In December 1936, the 9902 set inaugurated the Ozark State Zephyr, a joint operation with the Alton Railroad between St Louis and Kansas City, where it was joined by the 9903 on alternate timing in September 1938. The last of the classic Zephyrs, 9908, entered service as the General Pershing Zephyr between Kansas City and St Louis in 1939, replacing the less commodious 9902 set. The 9903 set continued to provide alternate timing on this route across the Show Me State, but had its original name of Mark Twain Zephyr restored, despite no longer operating through Samuel Clemens' hometown of Hannibal.

While 9900-9903 were power cars with RPO and baggage compartments, only one more, the unique 9908, was built. 9904-9907 were locomotives with the twin 900 hp 12-cylinder engine layout that GM-EMC's early E-units would use. 9906 and 9907, built for the ten car Denver Zephyr sets in 1936, included booster units. 9908 used the new 1000 hp GM 567 engine in a single engine configuration. After 9908, all of Burlington's new passenger locomotives were standard production models, with the cosmetic stainless steel bodywork of the E5s their only custom feature.

The Winton two-stroke diesel engines used in the Zephyr power units and early EMC designs, while a breakthrough in locomotive power, were an immature technology. Some of their early reliability problems were mitigated with changes to individual parts such as pistons; other solutions had to wait for a differently designed engine. For example, the first generation of pistons in the Winton engine only had about 50,000 miles of useful life, later extended to about 100,000 miles. GM's next generation diesel engine had pistons with a useful life of over 500,000 miles. The problems were most acute under the operating conditions of locomotive, rather than stationary or marine, use. Even with the problems of the Winton 201A, their maintenance regime was significantly lower than for steam locomotives.

9900 and 9901-9903 were articulated trainsets, with common trucks (Jacobs bogies) between each car. This caused operating problems, as train lengths could not be changed for demand and any single failure affected the entire train. All following power units were separate from their train, although four more articulated and semi-articulated carsets were built.

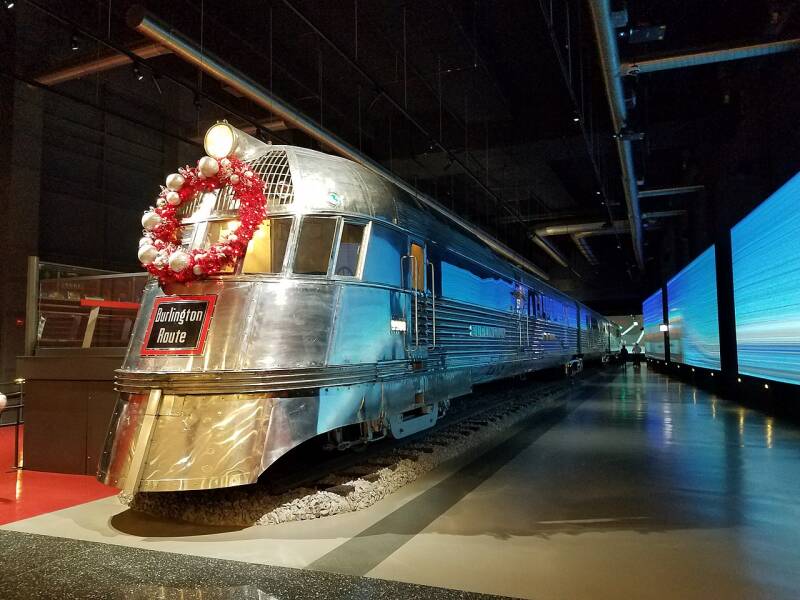

An overview of the renovated Pioneer Zephyr exhibit at MSI in December 2021. The wreath on the front of the cab was a temporary addition for the Christmas season. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)


A front view of the power car, July 1984. Click to enlarge. (Photo by Roger Puta, railfan 44, Public domain, via Wikimedia Commons)

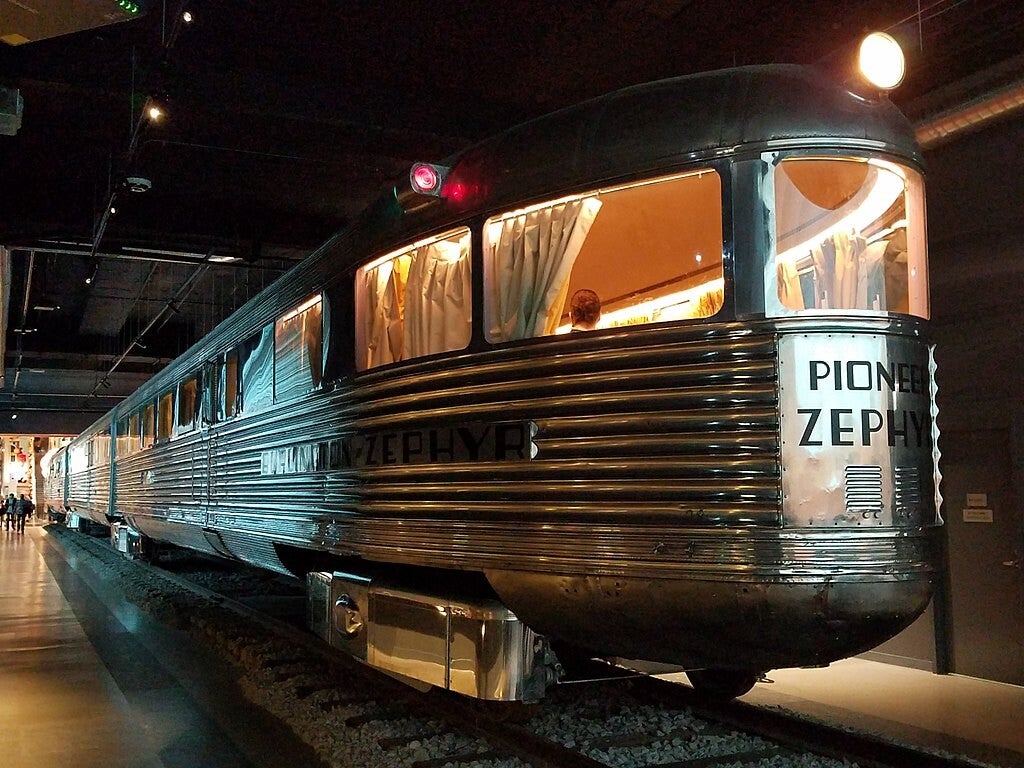

The observation car (rear) end of the Pioneer Zephyr at MSI in December 2021. Click to enlarge. (Photo by Sean Lamb. Slambo, CC BY-SA 4.0 <>, via Wikimedia Commons)

Regular revenue service

The Zephyr's power (leading) car was numbered 9900, the baggage-coach combine car 505, and the coach-observation 570. The train was placed in regular service between Kansas City, Missouri, Omaha and Lincoln, Nebraska, on November 11, 1934, with the train numbered 21 northbound and 20 southbound. The trainset replaced a pair of steam locomotives and six heavyweight passenger cars, weighing up to eight times as much as the Zephyr. By June 1935, it proved popular enough to add a fourth car, providing additional coach seating. The fourth car was originally a 40-seat coach number 525, but the following June it was switched to Twin Cities service, then back to the Pioneer Zephyr in December. Car 525 remained on the train until June 1938. Just over five years after it was introduced, the Pioneer Zephyr crossed the one million mile mark in regular service on December 29, 1939, near Council Bluffs, Iowa.

On the second anniversary of the train's famous dash, the original Burlington Zephyr was rechristened the Pioneer Zephyr to distinguish it as the first of the Burlington's growing Zephyr fleet. In 1938, car 525 was replaced by car number 500, a 40-seat buffet/lounge car, to provide light meals. Car number 505, the baggage-coach combine, was rebuilt at this time into a full baggage car, but it kept its original windows.

In 1939 the Pioneer Zephyr was involved in a head-on collision with a freight train that completely destroyed the cab. The train was rebuilt and re-entered revenue service soon afterward, but the accident drove home the advantages for crew safety of the elevated, behind-the-nose cab design of the contemporary EMC E-series locomotives.

Ralph Budd and the Burlington capitalized on the Zephyr's success. Many of the Burlington's named passenger trains began operating under the Zephyr brand. After the nine original Zephyr sets were completed during 1934–1939, standard production model diesel passenger locomotives with improved engines became available. Trains consisting of the new locomotives with new streamlined cars of standard size were ordered. Burlington ordered its new EMC E5 passenger diesels with matching stainless-steel fluting and operated their new full-size, long-distance trains under the Zephyr brand, with perhaps the best known being the California Zephyr.'

In 1948 and 1949, the Pioneer Zephyr was temporarily removed from service to participate in the Chicago Railroad Fair's "Wheels A-Rolling" pageant. The fair's purpose was to celebrate 100 years of railroad history west of Chicago, and the Pioneer Zephyr's role in the pageant was to highlight the latest strides in railroad technology. It resumed regular passenger operations when the fair ended on October 2, 1949. The fourth car that was added in 1935 was removed in May 1950. By 1955 the Pioneer Zephyr's route had been updated to run between Galesburg, Illinois, and Saint Joseph, Missouri; the trainset had been in continual service since 1934, operating over nearly 3 million miles (4.8 million km). The Pioneer Zephyr's last revenue run was a trip from Lincoln, Nebraska, to Kansas City, Missouri, (along the train's regular revenue route) that then continued to Chicago on March 20, 1960. When Amtrak took over passenger rail services in 1971, the legendary Zephyr name was preserved, and the California Zephyr is an Amtrak route in the 21st century.


Film poster for The Silver Streak. Click to enlarge.

(RKO, Public domain, via Wikimedia Commons)


Zephyr as cultural phenomenon

"Silver Streak" film
Press publicity had apparently first coined the term "Silver Streak". The Pioneer Zephyr's famous Denver-Chicago dash served as the inspiration for the 1934 film The Silver Streak starring Charles Starrett. In that story, the crew was racing to the Boulder Dam construction site with an iron lung, with only moments to spare. The original Zephyr trainset was used for the exterior shots in the film, while interior scenes were filmed on a soundstage in Hollywood. For the film, the "Burlington Route" nameplate on the train's nose was replaced with one that read "Silver Streak".

Zephyr tributes in advertising, commercial products, and sports
With Zephyr-mania sweeping the country, tributes turned up in the names of everything from sports teams to commercial products. In 1934, Father Becker, principal of the St. Mary Catholic High School in Menasha, Wisconsin, was so inspired by the dawn-to-dusk run that he chose "Zephyrs" as the mascot for the school. In Galesburg, Illinois, which is 162 rail miles from Chicago, the local high school named all its athletic teams the "Galesburg Silver Streaks" in honor of the train. In 1935, the H. N. White Company changed the name of its top-line saxophones to "King Zephyr." Ford introduced the Lincoln-Zephyr with the 1936 model year. Northwest Airlines' promotional materials from the late 1930s referred to their fleet of airliners as "Sky Zephyrs." If advertisers could find a way to cash in on Zephyr-mania, they did.

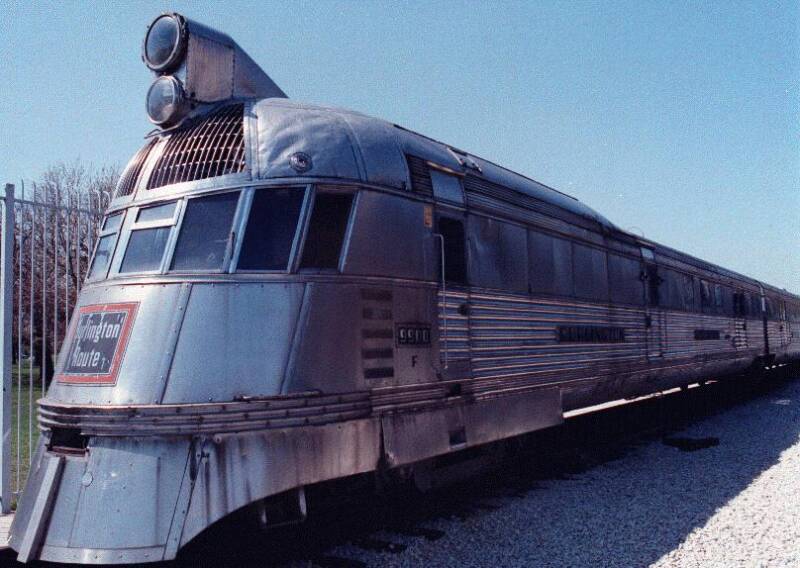

The Pioneer Zephyr. Click to enlarge.

(Photo by Charles Peirce, {{Cc-by-sa-2.0}} Category:Pioneer Zephyr)



Later years
On May 26, 1960, the 26th anniversary of the "Dawn-to-Dusk" dash, the original Pioneer Zephyr train (car numbers 9900, 505 and 570) was donated to Chicago's Museum of Science & Industry (MSI). Car number 500, which operated with the train from 1938, went along with Mark Twain Zephyr trainset 9903 to a party in Mount Pleasant, Iowa, for static display in a town park, but plans for the train's display did not work out; in 2002 car 500 and the Mark Twain Zephyr were stored in Granite City, Illinois, with plans to display it in Fairfield, Iowa. Ultimately, the Mark Twain Zephyr was restored to running condition by the Wisconsin Great Northern Railroad and is now part of their Dinner Train service.

MSI displayed the Pioneer Zephyr outdoors, with no protection from the weather, until 1994. At that time, the steam locomotive that shared the display space with the Zephyr, Santa Fe No. 2903, was donated to the Illinois Railway Museum (IRM) at Union, west of Chicago, while MSI prepared a new display location for the Zephyr.

MSI dug a pit in front of the building and built a new display area for the Zephyr, where it could be displayed year-round. In 1998, after the train received a cosmetic restoration by Northern Rail Car in Milwaukee, Wisconsin, the pit was finally ready to receive the train. The Pioneer Zephyr train is now on display at MSI just outside the main entrance from the museum's underground parking area, where it is one of the more popular exhibits. In November 2019, MSI temporarily closed the exhibit to add new interactive elements and an expanded experience. The exhibit re-opened to the public in March 2021.

In addition to the Pioneer Zephyr, two other legacies remain. An operable Nebraska Zephyr train was donated to IRM. There, powered by one of the large "E" series passenger diesels (an EMC E5) with the distinctive and durable stainless-steel fluting, it is still operated on short runs on the museum's substantial trackage, providing train enthusiasts and tourists with an experience reminiscent of the heyday of the Burlington's Zephyr service. The Silver Charger, power car of the General Pershing Zephyr, is on display at the National Museum of Transportation in St Louis, and the same train's "diner-parlor and observation car" is now the Silver Star Cafe in Port Hedland, Australia.

Also utilizing the name, the Minnesota Zephyr was a dinner train located in the historic city of Stillwater, Minnesota, although it was not directly associated with the historic Burlington Zephyr fleet.

Dorney Park & Wildwater Kingdom in Allentown, Pennsylvania, has a miniature replica train ride called Zephyr which was built in 1935 and helped the park survive the Great Depression.



Due to the Zephyr's place in American railroad history, many model railroaders have built their own versions of the Pioneer Zephyr in miniature. Several model manufacturers are now producing commercial ready-to-run models or kits of the train for modelers to build. This list is ordered by the manufacturer's release date:

American Flyer introduced one of the earliest versions of the Zephyr in 1934. Originally sold as a three-car set, the body shells were produced in sand-cast aluminum and hand-polished to represent the stainless steel-skinned prototype. Additional cars became available and the locomotive or "power unit" underwent some refinements during production; and a less expensive stamped lithographed steel version was also produced. The Zephyr set appeared in the 1934-1938 American Flyer catalogs. With the purchase of the American Flyer line in 1937 by the AC Gilbert Company, a new line of O scale (1:48) trains moved into production phasing out the Zephyrs and previous O-scale products collectively known as "Chicago Flyer".

Challenger Imports imported limited production ready-to-run brass models in HO scale (1:87) of the four-car Pioneer Zephyr, Mark Twain Zephyr and the Boston and Maine Railroad's Maine Cheshire and Maine Minuteman in 1993.

Fine N-Scale Products released a kit in 1996 in N scale (1:160) that includes an option for car number 500.

Con-Cor made limited-run models available in both HO scale and N scale that were released in 2005, and then again in 2012.

River Raisin Models released a ready-to-run model in S scale (1:64) of both the Pioneer Zephyr (in three- and four-car configurations) and the similar Flying Yankee, in 2005.

MTH Electric Trains released a limited production ready-to-run model of the three-car Pioneer Zephyr in O scale in 2005.


Pioneer Zephyr - CBQ 9900 Overview

In service: 1934–1960
Manufacturer: Budd Company, EMC
Constructed: 1934
Entered service: November 11, 1934
Number built: 1 trainset (3 cars)
Formation: 1: cab/engine/storage; 2: baggage/RPO/buffet/coach; 3: coach/observation
Fleet numbers: 9900
Capacity: 72 passenger seats,
Operator: Chicago, Burlington and Quincy Railroad
Car body construction: stainless steel
Train length: 197 ft 2 in (60.10 m)
Car length: 74 feet 0.125 inches (22,558.38 mm) (power car); 57 feet 8 inches (17,580 mm) (intermediate car); 63 feet 6 inches (19,350 mm) (rear car)
Width: 9 feet 1.0625 inches (2,770.188 mm) (body); 9 feet 10 inches (3,000 mm) (handrails)
Height: 12 ft 1.1875 in (3.69 m)
Wheel diameter: 36 in (914.40 mm) (drive wheels), 30 in (762.00 mm) (ride wheels)
Weight: 208,061 lb (94,375 kg)
Prime mover: EMC Winton 201A
Engine type: diesel
Cylinder count: 8
Cylinder size: 8 in (200 mm) bore, 10 in (250 mm) stroke
Traction motors: 2
Power output: 660 hp (490 kW)
AAR wheel arrangement: B-(2+2)-2
Wheels driven: 2
Trucks: 1 motor truck, 2 non-motor Jacobs trucks, 1 non-motor truck
Track gauge: 4 ft 8+1⁄2 in (1,435 mm)
Seating: open coach (2+2), observation lounge
Stock type: diesel-electric passenger one-directional trainset
