A Superliner bi-level Auto-Train lounge car operated by Amtrak.

(Matthew Neleigh Gummigoof at en.wikipedia, CC BY 2.5 <https://creativecommons.org/licenses/by/2.5>, via Wikimedia Commons)



PASSENGER CARS

A passenger railroad car or passenger car is a railroad car that is designed to carry passengers. The term passenger car can also be associated with a sleeping car, a baggage car, a dining car, and railway post office cars.

The first passenger cars were built in the early 1800s with the advent of the first railroads, and were small and little more than converted freight cars. Early passenger cars were constructed from wood; in the 1900s construction shifted to steel and later aluminum for improved strength. Passenger cars have increased greatly in size from their earliest versions, with modern bi-level passenger cars capable of carrying over 100 passengers. Amenities for passengers have also improved over time, with developments such as lighting, heating, and air conditioning added for improved passenger comfort. In some systems a choice is given between first- and second-class cars, with a premium being paid for the former.

Some maintenance (engineering) rolling stock is known as "MOW" (maintenance of way) equipment.

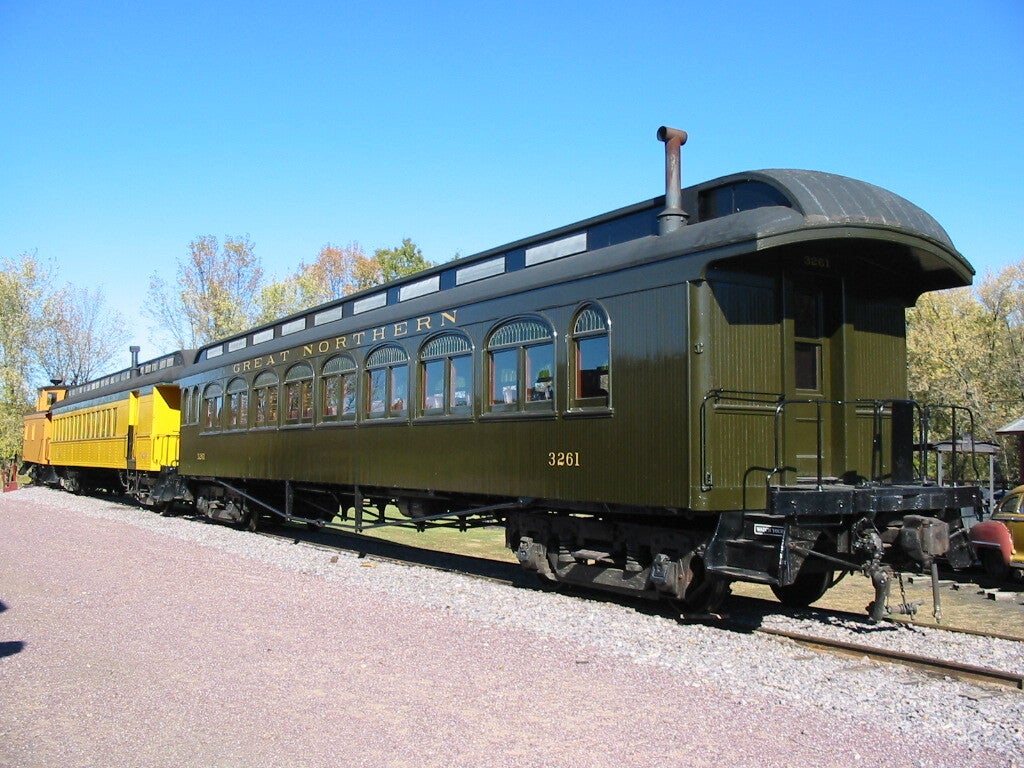

Restored clerestory cars on display at the Mid-Continent Railway Museum in North Freedom, Wisconsin.

(Sean Lamb (en:User:Slambo), CC BY-SA 2.0 <https://creativecommons.org/licenses/by-sa/2.0>, via Wikimedia Commons)



History

19th century: First passenger cars and early development

Up until about the end of the 19th century, most passenger cars were constructed of wood. The first passenger trains did not travel very far, but they were able to haul many more passengers for a longer distance than wagons pulled by horses.

As railways were first constructed in England, so too were the first passenger cars. One of the early coach designs was the "Stanhope". It featured a roof and small holes in the floor for drainage when it rained, and had separate compartments for different classes of travel. The only problem with this design is that the passengers were expected to stand for their entire trip. The first passenger cars in the United States resembled stagecoaches. They were short, often less than 10 ft (3.05 m) long and had two axles.

British railways had a head start on American railroads, with the first "bed-carriage" (an early sleeping car) being built there as early as 1838 for use on the London and Birmingham Railway and the Grand Junction Railway. Britain's early sleepers, when made up for sleeping, extended the foot of the bed into a boot section at the end of the carriage. The cars were still too short to allow more than two or three beds to be positioned end to end.

Britain's Royal Mail commissioned and built the first traveling post office cars in the late 1840s as well. These cars resembled coaches in their short wheelbase and exterior design, but were equipped with nets on the sides of the cars to catch mail bags while the train was in motion. American RPOs, first appearing in the 1860s, also featured equipment to catch mail bags at speed. The American design more closely resembled a large hook that would catch the mailbag in its crook. When not in use, the hook would swivel down against the side of the car to prevent it from catching obstacles.



The interior of a Pullman car on the Chicago and Alton Railroad circa 1900.

(Photo by Detroit Publishing Co., Library of Congress, Public domain)



Mid-19th Century Technology

As locomotive technology progressed in the mid-19th century, trains grew in length and weight. Passenger cars, particularly in America, grew along with them, first getting longer with the addition of a second truck (one at each end), and wider as their suspensions improved. Cars built for European use featured side door compartments, while American car design favored what was called a train coach, a single long cabin with rows of seats, with doors located at the ends of the car. Early American sleeping cars were not compartmented, but by the end of the 19th century they were. The compartments in the later sleepers were accessed from a side hall running the length of the cars, similar to the design of European cars well into the 20th century.

Many American passenger trains, particularly the long distance ones, included a car at the end of the train called an observation car. Until about the 1930s, these had an open-air platform at the rear, the "observation platform". These evolved into the closed end car, usually with a rounded end which was still called an "observation car". The interiors of observation cars varied. Many had special chairs and tables.

The end platforms of all passenger cars changed around the turn of the 20th century. Older cars had open platforms between cars. Passengers would enter and leave a car through a door at the end of the car which led to a narrow platform. Steps on either side of the platform were used for getting on or off the train, and one might hop from one car platform to another. Later cars had enclosed platforms called vestibules which together with gangway connections allowed passengers not only to enter and exit the train protected from the elements, but also to move more easily between cars with the same protection.

Dining cars first appeared in the late 1870s and into the 1880s. Until this time, the common practice was to stop for meals at restaurants along the way (which led to the rise of Fred Harvey's chain of Harvey House restaurants in America). At first, the dining car was simply a place to serve meals that were picked up en route, but they soon evolved to include galleys in which the meals were prepared. The introduction of vestibule cars, which for the first time allowed easy movement from car to car, aided the adoption of dining cars, lounge cars, and other specialized cars.



The observation car from the CB&Q's Pioneer Zephyr. The carbody was made of stainless steel in 1934; it is seen here at Chicago's Museum of Science and Industry in 2003.

(Sean Lamb (en:User:Slambo),  Creative Commons Attribution-Share Alike 2.0 Generic, via Wkimedia Commons)



1900–1950: Transition from wood to steel, new car types

In the early 1900s, safety concerns led the railroad industry to transition from wood to steel construction. Steel was heavier but this transition took place simultaneously with a transition to higher-powered locomotives. The Pennsylvania Railroad began building all-steel passenger cars in 1906 due to concerns about fire in the tunnels it was building to access Manhattan's Pennsylvania Station, which opened in 1910. Other railroads followed because steel cars were safer in accidents. During a transition period, some railroads put steel frames underneath wooden cars.

By the 1920s, passenger cars on the larger standard gauge railroads were normally between 60 ft (18.3 m) and 70 ft (21.3 m) long. The cars of this time were still quite ornate, many of them being built by experienced coach makers and skilled carpenters. In the United States, the so-called "chair car" with individual seating became commonplace on long-distance routes.

With the 1930s came the widespread use of stainless steel for car bodies. The typical passenger car was now much lighter than its carbon-steel cousins of old, though still much heavier than nineteenth-century wooden cars. The new "lightweight" and streamlined cars carried passengers in speed and comfort to an extent that had not been experienced to date. Aluminum and Cor-Ten steel were also used in lightweight car construction, but stainless steel was the preferred material for car bodies. Stainless steel cars could be and often were, left unpainted except for the car's reporting marks that were required by law.

By the end of the 1930s, railroads and car builders were debuting car body and interior styles that could only be dreamed of before. In 1937, the Pullman Company delivered the first cars equipped with roomettes – that is, the car's interior was sectioned off into compartments, much like the coaches that were still in widespread use across Europe. Pullman's roomettes, however, were designed with a single traveler in mind. The roomette featured a large picture window, a privacy door, a single fold-away bed, a sink and a small toilet. The roomette's floor space was barely larger than the space taken up by the bed, but it allowed the traveler to ride in luxury compared to the multilevel semiprivate berths of old.

Now that passenger cars were lighter, they were able to carry heavier loads, but the size of the average passenger that rode in them didn't increase to match the cars' new capacities. The average passenger car could not be made any wider or longer due to side clearances along the railroad lines, but they generally could get taller because they were still lower than many freight cars and locomotives. The railroads soon began building and buying dome and bilevel cars to carry more passengers.



Amtrak Cascades operates with tilting Talgo permanently coupled trainsets.

(Fourdee at English Wikipedia, Public domain, via Wikimedia Commons)



1950–present: High-technology advancements

Starting in the 1950s, the passenger travel market declined in North America, though there was growth in commuter rail. Private intercity passenger service in the U.S. mostly ended with the creation of Amtrak in 1971. Amtrak took over equipment and stations from most of the railroads in the U.S. with intercity service.

The higher clearances in North America enabled a major advancement in passenger car design, bi-level commuter coaches that could hold more passengers. These cars started to become common in the United States in the 1960s, and were adopted by Amtrak for the Superliner design as well as by many other railroads and manufacturers. By 2000, bi-level cars rivaled single level cars in use around the world.

While intercity passenger rail travel declined in America, ridership continued to increase in other parts of the world. With the increase came an increased use of newer technology on existing and new equipment. The Spanish company Talgo began experimenting in the 1940s with technology that would enable the axles to steer into a curve, allowing the train to move around the curve at a higher speed. The steering axles evolved into mechanisms that would also tilt the passenger car as it entered a curve to counter the centrifugal force experienced by the train, further increasing speeds on existing track. Today, Talgo trains are used in many places in Europe and they have also found a home in North America on some short and medium distance routes such as Eugene, Oregon, to Vancouver, British Columbia.

Amtrak continued to push the development of U.S.-designed passenger equipment even when the market demand didn't support it, ordering a number of new passenger locomotive and car types in the 1980s and 1990s. However, by 2000 Amtrak went to European manufacturers for the Amtrak Cascades (Talgo) and Acela Express trains, their premier services. These trains use new designs and are made to operate as coherent "trainsets".

High-speed trains are made up of cars from a single manufacturer and usually of a uniform design (although the dining car on the German ICE 1 has a dome). In the 1960s and 1970s countries around the world started to develop trains capable of traveling in the 150–200 mph range, to rival air travel. One of the first was France's TGV which entered service in 1981. By 2000, Western Europe's major cities (London, Paris, Brussels, Amsterdam, Geneva, Berlin, Rome, etc.) were connected by high-speed rail service.

Often tilting and high-speed cars are left in "trainsets" throughout their service. For example, articulated cars cannot be uncoupled without special equipment because the individual cars share trucks. This gives modern trains a smooth, coherent appearance because all the cars and often the engines share a similar design and paint scheme.



Car types

Traditionally the passenger car can be split into a number of distinct types.

The most basic division is between cars which do carry passengers and "head end" equipment. The latter are run as part of passenger trains, but do not themselves carry passengers. Traditionally they were put between the locomotive and the passenger-carrying cars in the consist, hence the name.

Some specialized types are variants of or combine elements of the most basic types.

Also, the basic design of passenger cars is evolving, with articulated units that have shared trucks, with bi-level designs, and with the "low floor" design where the loading area is very close to the ground and slung between the trucks.



Reclining seats in a coach car

(Union Pacific Railroad, Public domain, via Wikimedia Commons)



Coach

The coach is the most basic type of passenger car, also sometimes referred to as "chair cars".

Open coach
The most common in the U.S.A. is the open coach. An "open coach" has a central aisle; the car's interior is often filled with row upon row of seats as in a passenger airliner. Other arrangements of the "open" type are also found, including seats around tables, seats facing the aisle (often found on mass transit trains since they increase standing room for rush hour), and variations of all three. Seating arrangement is typically [2+2]. The seating arrangements and density, as well as the absence or presence of other facilities depends on the intended use – from mass transit systems to long distance luxury trains. Some cars have reclining seats to allow for easier sleeping by passengers not traveling in a sleeping car.



Dining car

Main article: Dining car

A dining car (or diner) is used to serve meals to the passengers. Its interior may be split with a portion of the interior partitioned off for a galley, which is off-limits to passengers. A narrow hallway is left between the galley and one side wall of the car for passengers to use. The remainder of the interior is laid out with tables and chairs to look like a long, narrow restaurant dining room. There are special personnel to perform waitstaff and kitchen duties.



Amtrak Superliner lounge car (also a low-floor, bi-level car).

(Matthew Neleigh Gummigoof, CC BY 2.5 <https://creativecommons.org/licenses/by/2.5>, via Wikimedia Commons)



Lounge

Main article: Lounge Car

Lounge cars carry a bar and public seating. They usually have benches, armchairs or large swiveling chairs along the sides of the car. They often have small tables for drinks, or may be large enough to play cards. Some lounge cars include small pianos and are staffed by contracted musicians to entertain the passengers.

These cars are often pulled in addition to the dining car, and on very long trains in addition to one or more snack or café cars. Café cars, such as the Amtrak café cars, are simpler, lacking window-facing seats, instead, rows of tables with facing pairs of bench seats, split by a food and drink counter.

Lounge cars are an important part of the appeal of passenger trains when compared to aircraft, buses and cars; there is more space to move around, socialize, eat and drink, and a good view.



Observation Car on the Santa Fe's Chief, 1937.

(Atchison, Topeka and Santa Fe Railway, Public domain, via Wikimedia Commons)



Observation

Main article: Observation car

The observation car almost always operated as the last car in a passenger train, in US practice. Its interior could include features of a coach, lounge, diner, or sleeper. The main spotting feature was at the tail end of the car – some more modern US designs had walls of the car usually curved together to form a large U shape, and larger windows were installed all around the end of the car; earlier designs had square ends with an observation open deck. Before these cars were built with steel walls, the observation end of heavyweight cars in the US and Canada resembled a roofed porch area. Larger windows were installed at the observation end on these cars as well. At this end of the car, there was almost always a lounge where passengers could enjoy the view as they watched the track rapidly recede into the distance.



Pullman Sleeping Cars on the Southern Pacific's Lark arriving at San Francisco, August 25, 1967.

(Roger Puta, courtesy Marty Bernard from U.S.A., Public domain, via Wikimedia Commons)



Sleeping car

Main article: Sleeping car

Often called "sleepers" or "Pullman cars" (after the main American operator), these cars provide sleeping arrangements for passengers travelling at night. Early models were divided into sections, where coach seating converted at night into semi-private berths. More modern interiors are normally partitioned into separate bedroom compartments for passengers. The beds are designed in such a way that they either roll or fold out of the way or convert into seats for daytime use. Compartments vary in size; some are large enough for only a bed, while others resemble efficiency apartments including bathrooms.



Trailer car

A similar car which was usually found in DMUs, EMUs, and locomotive-hauled passenger trainsets. They also generally intermediate cars within the consist and sometimes have driving control facilities. They may carry auxiliary equipment (E.g. the braking system, air conditioning, etc.) where space is limited.



St. Thomas Central Railway No. 57636, a restored CN express baggage car, December 2004.

(The original uploader was JYolkowski at English Wikipedia., CC BY-SA 3.0 <http://creativecommons.org/licenses/by-sa/3.0/>, via Wikimedia Commons)



Head-end equipment

Baggage car

See also: Baggage Car

Although passengers generally are not allowed access to the baggage car, they were included in a great number of passenger trains as regular equipment. The baggage car is a car that was normally placed between the train's motive power and the remainder of the passenger train. The car's interior is normally wide open and is used to carry passengers' checked baggage. Baggage cars were also sometimes commissioned by freight companies to haul less-than-carload (LCL) shipments along passenger routes (Railway Express Agency was one such freight company). Some baggage cars included restroom facilities for the train crew, so many baggage cars had doors to access them just like any other passenger car. Baggage cars could be designed to look like the rest of a passenger train's cars, or they could be repurposed box cars equipped with high-speed trucks and passenger train steam and air connections. A special type of baggage car came equipped with doors on one end to facilitate transport of large pieces of equipment and scenery for Broadway shows and other productions. These "theatrical" baggage cars were assigned theatrical names (i.e. Romeo and Juliet), and were similar to the "horse cars" that were used to transport racehorses.



Missouri-Kansas-Texas, Baggage and Express Car 2651 at Austin, Texas, October 3, 1961.

(Everett L. DeGolyer,  Jr., DeGolyer Library, SMU Central University Libraries, No restrictions, via Wikimedia Commons)



Express car

Express cars carry high-value freight in passenger consists. These cars often resembled baggage cars, although in some cases specially-equipped boxcars or refrigerator cars were used. In the United States, the majority of these cars were operated by Railway Express Agency (REA) from 1918 to 1975. Following REA's bankruptcy, Amtrak took over express type shipments under the Amtrak Express brand, eventually introducing rolling stock like material handling cars, Roadrailers. Amtrak mostly exited the express business in 2003, now only using extra space in baggage cars on trains.



The famous racehorse Dan Patch had his own private car, shown here at Savage, MN, ca. 1900.

(Public domain via Wikimedia Commons)



Horse car

Specialized stock cars were used to transport horses and other high value livestock as part of passenger consists. Similar equipment is used in circus trains to transport their animals.



The interior of a railway post office on display at the National Railroad Museum in Green Bay, Wisconsin.

(The original uploader was Slambo at English Wikipedia., CC BY-SA 2.0 <https://creativecommons.org/licenses/by-sa/2.0>, via Wikimedia Commons)



Railway post office (RPO)

Main articles: Railway post office

Like baggage cars, railway post office (RPO) cars were not accessible to paying passengers. These cars' interiors were designed with sorting facilities that were often seen and used in conventional post offices around the world. The RPO is where mail was sorted while the train was en route. Because these cars carried mail, which often included valuables or quantities of cash and checks, the RPO staff (who were employed by the postal service and not the railroad) were the only train crews allowed to carry guns. The RPO cars were normally placed in a passenger train between the train's motive power and baggage cars, further inhibiting their access by passengers.



Canadian Pacific Railway colonist car No. 2809, 1924.

(Canadian Government, Dept. of Interior, Public domain, via Wikimedia Commons)



Specialized types

Colonist Car

Main article: Colonist car

A colonist car or emigrant car was a special sleeping car designed to take immigrants from ocean ports to settlement areas in western North America at the cheapest possible fare. They offered simple sleeping berths and a cooking area for immigrants who were expected to bring their own food and bedding.



Chicago Great Western No. 4061 a coach-baggage combine.

(Gary Lee Todd, Ph.D., CC0, via Wikimedia Commons)



Combine

Main article: Combine car

A combine is a car that combines features of a head-end and a regular passenger car. The most common combination is that of a coach and a baggage car, but the combination of coach and post office car was also common. Combines were used most frequently on branch lines and short line railroads where there wasn't necessarily enough traffic to economically justify single-purpose cars. As lightweight cars began to appear on railroads, passenger cars more frequently combined features of two or more car types on one car, and the classic heavyweight combine fell out of use.



A Long Island Rail Road Control Cab that was rebuilt from Milwaukee Road F9 No. 126A and now classed as an F9m.

The unit now contains a Detroit Diesel V-12, which runs the generator that supplies hotel power to the train.

The unit is incapable of moving on its own. September 20, 1979. Photo by John J. Scala.

(Audio-Visual Designs, Earlton, NY, Public domain, via W. Lenheim Collection)



Control car (cab)

Main article: Control car

A control car is a passenger car which lets the train be run in reverse with the locomotive at the back. It is common on commuter trains in the US, Canada and Europe. This can be important for serving small towns without extensive switching facilities, end train stations, dead-end lines, and having a fast turnaround when changing directions in commuter service.



Kansas City Southern Dome car "Monterrey".

(terry cantrell, CC BY-SA 2.0 <https://creativecommons.org/licenses/by-sa/2.0>, via Wikimedia Commons)



Dome car

Main article: Dome car

A dome car can include features of a coach car, sleeping car, a lounge car, dining car, and an observation car. Within the United States, the primary manufacturers were the Budd Company (stainless steel construction), the Pullman Company (steel construction), and ACF (American Car & Foundry, aluminum construction). A portion of the car, usually in the center, is split between two levels, with stairs leading both up and down from the train's regular passenger car floor level. The lower level of the dome usually consisted of a small lounge area, while the upper portion was usually coach or lounge seating within a "bubble" of glass on the car's roof. Budd Co. dome cars used curved glass, whereas Pullman company cars used flat panels of glass that were positioned at different angles above the roofline. Passengers in the upper portion of the dome were able to see in all directions from a vantage point above the train's roof line. On some dome cars, the lower portion was built as a galley, where car attendants used dumbwaiters to transfer items between the galley and a dining area in the dome portion of the car. In the United States, the Union Pacific railroad was the primary user of dome dining cars in the pre-Amtrak era.

Some dome cars were built with the dome extending the entire length of the car (a "full dome" car), while others had only a small observation bubble. There were also combination dome-observation cars built which were meant to be the last car on the train, with both rear observation and the dome up top. Dome observation cars came in both round end, and square end versions. The Union Pacific, in the US, was the primary user of square-end observation cars, prior to Amtrak, although the Burlington Route had several square-end cars of stainless steel.



AT&SF Hi-Level car No. 578, part of the "El Capitan" consist.

(Fred Harvey, Public domain, via W. Lenheim Collection)



Bi-level coach

Main article: Bi-level car

As passenger car construction improved to the point where dome cars were introduced, some passenger car manufacturers began building bi-level passenger train cars for use in areas that are more heavily populated or to carry more passengers over a long distance while using fewer cars (such as Amtrak's Superliner cars). Cars used on long-distance passenger trains could combine features of any of the basic car types, while cars used in local commuter service are often strictly coach types on both levels.



Chicago & North Western Drover's Car No. 10802 was built by American Car and Foundry in 1909.

It's been beautifully restored and can be seen at the Mid-Continent Railway Museum in New Freedom, WI.

The Mid-Continent is an outdoor living history museum and operating railroad recreating, preserving, and interpreting the small town/shortline

way of life from the “Golden Age of Railroading.” Visit the Mid-Continent Railway Museum today: https://www.midcontinent.org/.

(Mid-Continent Railway Museum, Fair use, Title 17, Section 107)



Drovers' car

Drovers' cars, also called a Drover's Caboose, were used on long distance livestock trains in the western United States. The purpose of a drovers' car was to accommodate the livestock's handlers on the journey between the ranch and processing plant. They were usually shorter, older cars, and equipped with stove heaters, as no trainline steam heating was provided.



A Narragansett-style excursion car on the Walt Disney World Railroad.

(Mike Powell, CC BY-SA 2.0 <https://creativecommons.org/licenses/by-sa/2.0>, via Wikimedia Commons)



A US Army Hospital railcar at the Gold Coast Railroad Museum, Miami, FL, 2011.

(Ebyabe, CC BY-SA 3.0 <https://creativecommons.org/licenses/by-sa/3.0>, via Wikimedia Commons)



Hospital Car

See Main Article: Hospital Car

A variety of Hospital trains operate around the world, employing specialist carriages equipped as hospital wards, treatment rooms, and full-scale operating theaters.

During World War II, the United States utilized a number of Hospital cars as transport for wounded military personnel. Built 1944-1946, these cars became surplus and were retired immediately after the war. Many of the cars saw little or no service.



Narragansett-style excursion car

Narragansett-style excursion cars are open-air passenger cars with cross-bench seating first popularized by railroads in New England. Current operating examples of these passenger cars can be found on the Disneyland Railroad in California and on the Walt Disney World Railroad in Florida. Similar coaches are also found on the Western River Railroad in Tokyo Disneyland.



Delaware and Hudson business car No. 500 was built by Pullman in 1917 for president L.F. Loree.

Shown here in March 1967. Photo by Jim Shaughnessy.

(Audio-Visual Designs, Earlton, NY, Public domain, via W. Lenheim Collection)



Private car

Main article: Private railroad car

Many cars built by Pullman and other companies were either originally built or later converted for use as business and private cars which served as the "private jet" of the early-to-mid-20th century. They were used by railroad officials and dignitaries as business cars, and wealthy individuals for travel and entertainment. There are various configurations, but the cars generally have an observation platform and include a full kitchen, dining room, state rooms, secretary's room, an observation room, and often servant's quarters. A number of these private cars have survived the decades and some are used for tour rides, leasing for private events, etc. A small number of private cars (along with other types of passenger cars), have been upgraded to meet current Amtrak regulations, and may be chartered by their owners for private travel attached to Amtrak trains.



Pullman troop sleeper at the Hoosier Valley Railroad Museum.

(vxla, CC BY 2.0 <https://creativecommons.org/licenses/by/2.0>, via Wikimedia Commons)



Troop sleeper

Main article: Troop sleeper

A "troop sleeper" was a railroad passenger car which had been constructed to serve as something of a mobile barracks (essentially, a sleeping car) for transporting troops over distances sufficient to require overnight accommodations. This method allowed part of the trip to be made overnight, reducing the amount of transit time required and increasing travel efficiency. Troop kitchens, rolling galleys, also joined the consists in order to provide meal service en route (the troops took their meals in their seats or bunks). Troop hospital cars, also based on the troop sleeper carbody, transported wounded servicemen and typically traveled in special trains averaging fifteen cars each.



Car technology

Passenger cars are as almost as old as railroading itself, and their development paralleled that of freight cars. Early two axle cars gave way to conventional two truck construction with the floor of the car riding above the wheels; link and pin couplers gave way to automatic types.

Several construction details characterized passenger equipment. Passenger trains were expected to run at higher speeds than freight service, and therefore passenger trucks evolved to allow superior ride and better tracking at those speeds. Over time, in most cases provision was made for passengers and train staff to move from car to car; therefore platforms and later vestibules were used to bridge the gap.

In later years a number of changes to this basic form were introduced to allow for improvements in speed, comfort, and expense.



Articulated

Main article: Articulated car

Articulated passenger cars are becoming increasingly common in Europe and the US. This means that the passenger cars share trucks and that the passageways between them are more or less permanently attached. The cars are kept in "trainsets" and not split up during normal operations.

Articulated cars have a number of advantages. They save on the total number of wheels and trucks, reducing costs and maintenance expenses. Further, movement between cars is safer and easier than with traditional designs. Finally, it is possible to implement tilting schemes such as the Talgo design which allow the train to lean into curves. The chief disadvantage is that failure of a single car disables the entire set, since individual cars cannot be readily switched in and out of the consist.



Siemens light rail vehicle (articulated, low-floor) in Portland, Oregon.

(Alphalife, Public domain, via Wikimedia Commons)



Low-floor

Main article: Low-floor

In some countries (such as the US), platform level may be below the level of the floor of passenger cars, resulting in a significant step up from platform level – leading to slower boarding times, which are important for high-capacity systems. Low-floor cars have their main passenger and loading floor directly on level with the loading platform, instead of having a step up to the passenger compartment as was traditional until around the 1970s. This is achieved by having a low-slung chassis with the "low floor" resting between the trucks, rather than resting completely on top with a simpler straight chassis design. This improved design is seen in many passenger cars today, especially bi-level cars. The low floor enables easy access for bicycles, strollers, suitcases, wheelchairs and those with disabilities, which is otherwise not always convenient or even possible with the traditional passenger car design.

Within the United States, the Pennsylvania Railroad developed 'The Keystone' 7 car set of cars with their own attached (head end) power car in the late 1950s. It was mostly used between New York City and Washington, DC. Boarding was at the normal platform level, at the end of the cars, with the center section between the trucks lowered to give the cars a lower center of gravity, and higher speed capability.



Budd RDC-2 at Danbury Railway Museum in April 2006.

The car was originally built for the Baltimore and Ohio Railroad in 1956 as No. 6505, then renumbered No. 9940 in 1970.

(Mike Powell, CC BY-SA 2.0 <https://creativecommons.org/licenses/by-sa/2.0>, via Wikimedia Commons)



Self-propelled passenger equipment

See Also: Doodlebug (Motorized Railcar)

These vehicles usually carry motive power in each individual unit. Trams, light rail vehicles and subways have been widely constructed in urban areas throughout the world since the late 19th century. By the year 1900, electric-powered passenger cars were ubiquitous in the developed world, but they fell into decline after World War II, especially in the U.S. By 2000 they had regained popularity and modern lines were being rebuilt where they had been torn up only 40 years earlier to make way for automobiles.

On lighter-trafficked rural railways, powered diesel cars (such as the Budd Rail Diesel Car) continue to be popular. In Germany, the new Talent design shows that the diesel-powered passenger car is still a viable part of rail service. In the UK, locomotive-hauled passenger trains have largely been replaced by diesel multiple units and electric multiple units, such as the Bombardier Voyager family and the Hitachi A-Train AT300 family, even on express services.

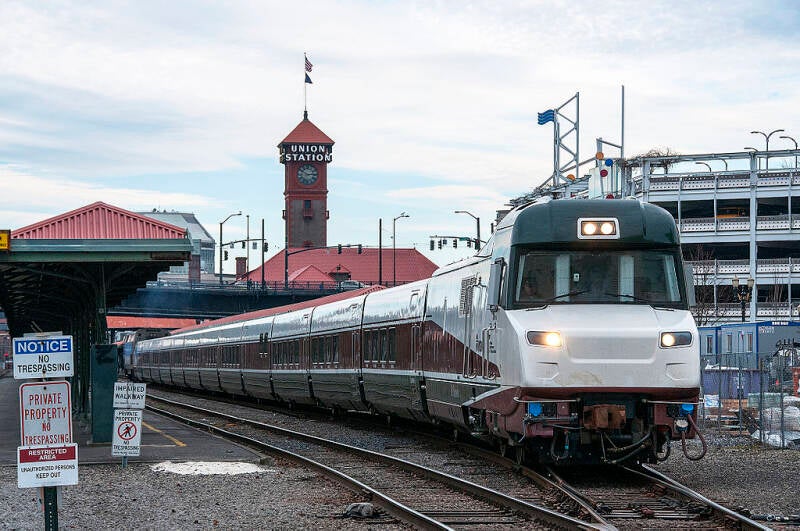

A Talgo Series 8 trainset departs Portland Union Station with the engineer controlling the train from the cab located inside the power car.

(Oregon Department of Transportation, CC BY 2.0 <https://creativecommons.org/licenses/by/2.0>, via Wikimedia Commons)



Tilting

Main article: Tilting train

These cars are able to tilt to counter the effects of inertia when turning, making the ride more comfortable for the passengers. Amtrak has adopted Talgo trainsets for its Amtrak Cascades service in the Pacific Northwest. Other manufacturers have also implemented tilting designs. The British Rail Class 390 is a tilting train operating in the UK.



Lighting, heating, air-conditioning

The earliest form of train lighting was provided by Colza oil lamps. The next stage was gas lighting, using compressed gas stored in cylinders under the coaches. Finally, electric lighting was introduced.

Early railway coaches had no heating but passengers could rent foot-warmers. These worked on the same principle a modern sodium acetate heating pads. Later, steam heating was introduced, using a steam supply from the steam locomotive. Steam heating continued into the diesel locomotive era, with steam supplied by a steam generator. Now, electric heating is almost universal and air-conditioning is often provided as well. In the case of diesel multiple units, the coaches may be heated by waste heat from the engines, as in an automobile.

In a subway car, tram or train, an insulator at a track switch may cut off power from the car for a few feet along the line and use a large capacitor to store energy to drive the subway car through the gap in the power feed.
