EMD F59PH at Dallas Union Station in November 2004.

(I, Adam E. Moreira, CC BY-SA 3.0 US <https://creativecommons.org/licenses/by-sa/3.0/us/deed.en>, via Wikimedia Commons)



The Trinity Railway Express (TRE) is a commuter rail service in the Dallas–Fort Worth metroplex, Texas, United States. It was established by an interlocal agreement between Dallas Area Rapid Transit (DART) and Trinity Metro. Each transit authority owns a 50% stake in the joint rail project and contractor Herzog Transit Services operates the line. The TRE began operating in December 1996.

In 2023, the system had a ridership of 1,163,600, or about 4,500 per weekday as of the fourth quarter of 2023, making it the seventeenth most-ridden commuter rail system in the United States.

Before 2006, the TRE was typically shown as a green line on DART maps and therefore was sometimes referred to as the "Green Line," but this was not an official designation. In 2006, DART chose green as the color for its new light rail route, the Green Line. Since 2006, the TRE has been shown as a dark blue line on DART maps.


Trinity Railway Express highlighted in blue.

(Wikimedia maps | Map data © OpenStreetMap contributors)



Named after the Trinity River, the West Fork of which flows from Fort Worth to Dallas, the TRE was launched on December 30, 1996, shortly after the inaugural service of Dallas' DART Light Rail system, operating from Dallas Union Transit Station to the South Irving Transit Station. It runs along a former Chicago, Rock Island & Pacific Railroad line that the cities of Dallas and Fort Worth purchased in 1983 for $34 million.

Service initially operated only in weekday rush hours, but midday and evening service was added in December 1997, and Saturday service was added in December 1998.

On September 18, 2000, the line was extended to the suburb of Richland Hills and, for the first time, there was rail service available between downtown Dallas and Dallas/Fort Worth International Airport. On November 13, 2000, the West Irving Transit Station also opened. On December 3, 2001, the TRE was extended to its current terminus at the T&P Station in downtown Fort Worth. On February 17, 2024, Richland Hills station was closed, being replaced by Trinity Lakes station, which opened on February 19, 2024.



The eastern terminus of the TRE route is Dallas Union Station on the west side of downtown Dallas. From there, the line runs northwest parallel to Interstate 35E, passing American Airlines Center and Dallas Market Center before turning west. The line crosses the Elm Fork of the Trinity River into Irving, passing through Irving's historic downtown district. The train continues west to the Dallas County/Tarrant County border, passing under the President George Bush Turnpike.

While crossing into Tarrant County, the line passes about four miles south of Dallas/Fort Worth International Airport. The line passes over SH-360 and takes a slight southwest turn along the northern city limits of Arlington. It turns slightly northwest towards Bell before following the southern city limits of Hurst. As it approaches Interstate 820, it takes a sharper southwest turn towards downtown Fort Worth, passing through Richland Hills and Haltom City. The line enters downtown Fort Worth from the northeast, passing under Interstate 35W and curving towards Fort Worth Central Station. Finally, the track curls around downtown Fort Worth towards T&P Station.

According to current TRE schedules, a one-way trip in either direction takes approximately 1 hour and 2 minutes.



TRE provides service six days a week from 4 AM (5 AM on Saturdays) to midnight (1 AM on Fridays). Trains are scheduled to arrive once every hour, or once every half-hour on weekdays during peak periods (4 to 9 AM and 2 to 7 PM). TRE does not provide service on Sundays except during the State Fair of Texas, in which case a Saturday schedule is used.

The TRE service yard is located in Irving between West Irving and CentrePort/DFW. During the start and end of both service time and peak periods, some trains will start or end at one of these stations.


TRE Link

Because TRE passes south of Dallas/Fort Worth International Airport, the airport is serviced via a shuttle bus that runs between CentrePort/DFW and the airport's Terminal B. The Terminal B stop provides a connection to TEXRail via a pedestrian path. Branded as TRE Link and operated by Trinity Metro, the shuttle runs every 20-40 minutes during TRE operating hours.


EMD F59PH at Dallas Union Station June 2016. (Michael Barera, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons)


EMD F59PHI No. 570, at the Fort Worth Intermodal Transportation Center. (Michael Barera, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons)


Bombardier Bi-Level Coach Cars of the Trinity Railway Express in front of the W Hotel in 2009. (Photo: Andreas Praefcke, CC BY 3.0 <https://creativecommons.org/licenses/by/3.0>, via Wikimedia Commons)


A TRE Budd Rail Diesel Car,
type RDC-1 at Centre Port. (Marduk, Public domain, via Wikimedia Commons)

Rolling Stock

 Class   Type(s)   Top speed  Top Speed Number Built
EMD F40PH Diesel Locomotive 110 mph 177 km/h 2 1981–1985
EMD F59PH Diesel Locomotive 110 mph 177 km/h 7 1988–1994Late 2010 (Overhaul)
EMD F59PHI Diesel Locomotive 110 mph 177 km/h 2 2001
Bombardier BiLevel Coach Coach Car Cab Car 95 mph 150 km/h 25 1976–77 200320072009
Former fleet
Budd Rail Diesel Car, type RDC-1 Diesel Multiple Unit 85 mph 137 km/h 13 1954–58

Trinity Railway Express train pulling into Fort Worth Central Station.

(WRHowellJr at English Wikipedia, Public domain, via Wikimedia Commons)


Diesel locomotives

TRE has a fleet of 11 locomotives.

  • EMD F59PH IV (1994)

There are seven EMD F59PH IV locomotives that were acquired from GO Transit. The original numbers for these were No. 525, Nos. 527–528 and Nos. 565–568. These were overhauled in late 2010 by the Norfolk Southern Railway and RELCO Locomotive to meet EPA standards and renumbered 120–126.

  • EMD F59PHI (2001)

There are two EMD F59PHI locomotives that were purchased from EMD. The numbers for these are No. 569 and No. 570.

  • EMD F40PH (2022)

TRE acquired 2 ex-Amtrak F40PHs No. 270 and 274 from Progress Rail in Late 2021 and Delivered in January 2022. They are numbered 130 and 131.

  • Siemens Charger (2026)
  • Announced in 2024, Siemens Chargers to be delivered in 2026.


  • Bombardier Transportation and Hawker Siddeley bi-level cabs and coaches

1000-1001 built 1983 (now coaches 1048-1049) 1002-1003 built 2003 1004-1009 built 2007.


Former fleet

Until 2011, the TRE fleet included diesel multiple units, in the form of 13 Budd Rail Diesel Cars (RDCs) built in the 1950s for Canadian Pacific (9), Canadian National (3) and Boston & Maine (1). They were purchased used from Via Rail Canada in 1993. All were remanufactured by GEC-Alsthom in Montreal. They entered service in March and April 1997 – after trains leased from Amtrak and the Connecticut Department of Transportation temporarily provided initial TRE service when the RDCs were not ready in time for the inauguration of TRE service in December 1996 – and thereafter provided all service for the line's first two to three years. They remained in service for about 14 years, the last cars being taken off of TRE service in March 2011. In 2010–2011, 11 of the 13 cars were leased to Denton County Transportation Authority for operation on the A-train. They were returned in 2012 and placed in storage at the TRE shops in Irving, Texas. In spring 2017, 12 RDCs were sold via auction to AllEarth Rail, a Vermont-based private company that intends to use them to operate commuter rail service connecting the Vermont cities of Montpelier and Burlington. AllEarth subsequently resold two of the TRE cars to TriMet, of Portland, Oregon, before they had left Texas, and those two Dallas RDCs (Nos. 2007 and 2011) were moved in August 2017 from Texas to Oregon, where TriMet planned to use them on its WES Commuter Rail service. The other 10 RDCs were moved to Vermont the same month.

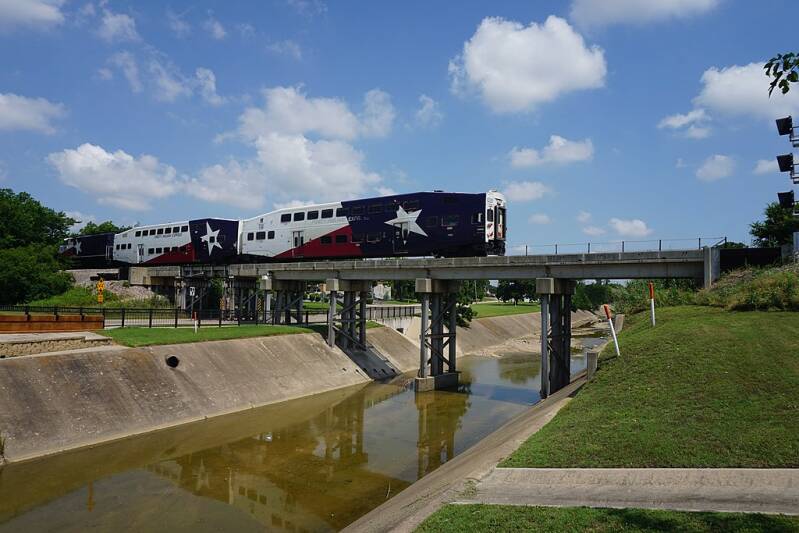

Trinity Railway Express train with Bombardier BiLevel Coaches.

Michael Barera, CC BY-SA 4.0 <https://creativecommons.org/licenses/by-sa/4.0>, via Wikimedia Commons.


Train consist

Each train includes at least one locomotive unit and one bi-level cab car. Typically, one or two additional coach cars are included between the locomotive and cab car. Each cab car (and thus each train) has a restroom and passengers may move between cars during the trip. The trip from Union Station to T&P Station takes just over an hour, with scheduled trip times ranging from one hour, three minutes to one hour, eleven minutes. Track improvements have been underway which should offer an improvement in travel times by double-tracking certain stations and sections of the route. Some portions of the route are single-track, requiring eastbound and westbound trains to meet only at certain points and requiring some eastbound trains to hold for 5–7 minutes to wait for a westbound train to get to the passing area.


The TRE stops at the historic T&P Station in Fort Worth.

(No machine-readable author provided. Gyrofrog assumed (based on copyright claims)., CC BY-SA 2.5 <https://creativecommons.org/licenses/by-sa/2.5>, via Wikimedia Commons)



  • T&P Station
  • Fort Worth Central Station
  • Trinity Lakes
  • Bell
  • CentrePort/DFW Airport
  • West Irving
  • Downtown Irving/Heritage Crossing
  • Medical/Market Center
  • Victory
  • Union Station


TRE train at South Irving station.

(Mbrstooge (talk) 15:25, 18 January 2008 (UTC), Public domain, via Wikimedia Commons)



Owner: Dallas Area Rapid Transit (50%) / Trinity Metro (50%)
Locale: Dallas–Fort Worth metroplex
Termini: Union Station, Dallas / T&P Station, Fort Worth
Stations: 10
Service Type: Commuter rail
Operator: Herzog Transit Services
Daily ridership: 4,500 (weekdays, Q4 2023)
Ridership: 1,163,600 (2023)
Opened: December 30, 1996; 27 years ago
Line length: 34 mi (55 km)
Track gauge: 4 ft 8+1⁄2 in (1,435 mm) standard gauge
